GN 7580

Inner leaf type
  • Type A: Tangential fastening with cylindrical recess
  • Type B: Tangential fastening with tapped bushings
  • Type C: Radial fastening with cylindrical recess
  • Type D: Radial fastening with tapped bushings
Outer leaf type
  • Type A: Tangential fastening with cylindrical recess
  • Type B: Tangential fastening with tapped bushings
  • Type C: Radial fastening with cylindrical recess
  • Type D: Radial fastening with tapped bushings

Hinge leaf

Aluminum

Anodized, black ALS

Bearing bushings

Bronze

Hinge pin

Stainless steel AISI 420

Thrust washers

Stainless steel AISI 302

Adjusting screws

  • Stainless steel AISI 303
  • With thread locking
  • Complete nylon coating

Tapped bushings

Stainless steel AISI 303

Precision hinges GN 7580 supply a pivoting movement to elements such as swing arms, spacers and clamping plates. The wear-resistant precision hinges feature low radial play and adjustable axial play.

A variety of installation situations can be covered by combining the various inner and outer leaves. Precise positioning can be achieved with dowel pins in the fit bores of the screw-on surfaces.

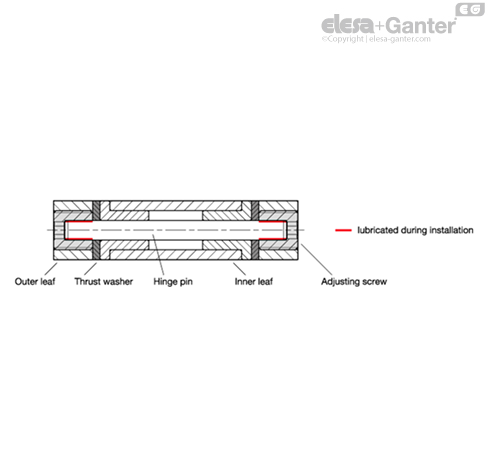

The bearing bushings and the tapped bushings of types B and D are supplied preassambled in the hinge leaves. The hinge pin, thrust washers and adjusting screws are packaged separately.

  • ISO-Fundamental Tolerances
  • Stainless Steel Characteristics
