GN 422

Types

  • Type T1: With 1 button
  • Type T2: With 2 buttons

Connection types

  • Connection type K: Cable
  • Connection type S: Plug (with 0.25 m cable)

Zinc die casting ZD

Powder coated

Black, RAL 9005, textured finish SW

Silver, RAL 9006, textured finish SR

Button

Stainless steel AISI 304

Cable (Outer sheath)

Polyurethan PUR

Black

Light guide

Plastic

Crystal-clear Polycarbonate (PC)

Cabinet U-handles GN 422 come with one or two push buttons. Each button has a changeover switch and integrated LED ring lighting.

When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).

Independent whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.

The cabinet U-handle is functional and highly compact and can be used for any application due to its universal design.

  • IP Protection classes
  • Plastic characteristics

  • Cables with connector coupling M12x1 GN 330

Electrical and mechanical properties
Button-____logo___422_SB-21235-0__
ContactsChangeover contact, snap contact
Contact materialSilver alloy
Switching voltagesmax. 125 V (plug)
max. 240 V (cable)
Switching currentmax. 3 A
mech. lifespan106 switching cycles
elect. lifespan50.000 switching cycles (under full load)
---
LED ring lighting24 V DC ± 10 % / 7 mA____logo__422_SB-21198-0__
Operating voltage /
operating current
- bi-color (red / green)
---
Category of use (button)AC 15: 24 V AC / 1 A / DC 13: 24 V DC / 0.7 Aaccording to IEC 60947-5-1
AC 15: 110 V AC / 1 A / DC 13: 110 V DC / 0.2 A
AC 15: 220 V AC / 0.5 A / DC 13: 220 V DC / 0.1 A
--
AC: 120 V AC / 5 A / DC: 12 V DC / 1 Aaccording to UL 508
AC: 240 V AC / 3 A
---
Connection type-____logo__422_SB-21196-1__
Cable (K)PUR cable with open stranded wires (2 m or 5 m)
or-
Plug connector (S)5-pin connector M12x1 with PUR cable 0.25 m
--
--Plug connector and cable assignment
Protection classIP 67-
---
Approvals, conformity declarations____logo__ce__
CE marking

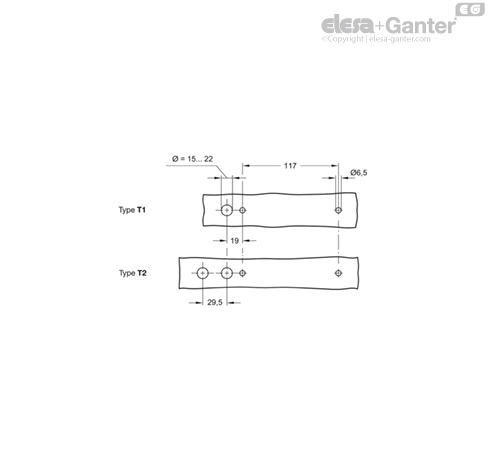

The holes must be free of burrs to prevent damage to the cable.
