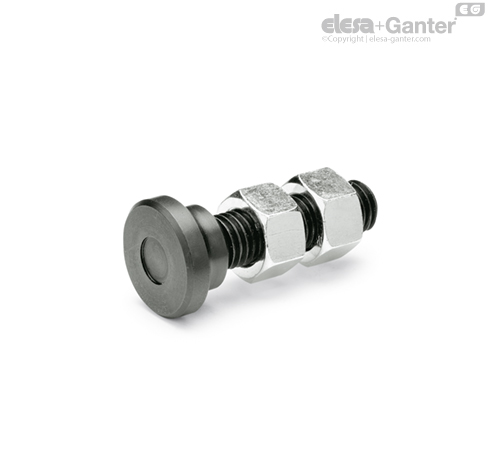

GN 802

Toggle clamp spindle assemblies

with swivel steel thrust pad

GN 802

Toggle clamp spindle assemblies
Toggle clamp spindle assemblies

GN 802

Toggle clamp spindle assemblies
Toggle clamp spindle assemblies

Grub screw DIN 6332

Steel

Thrust point hardened

blackened

Thrust pad  DIN 6311

Steel

case-hardened

Hexagon nuts ISO 4032 / DIN 934

Steel zinc plated, blue passivated

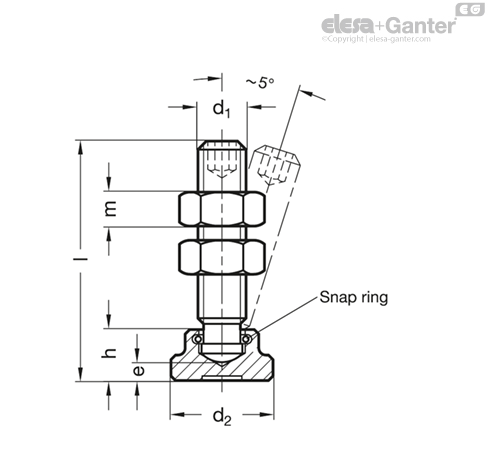

By means of the retaining ring in the thrust pad a simple and toggle link between bolt an thrust pad is created.

The two hexagon nuts are included parts of the order.
