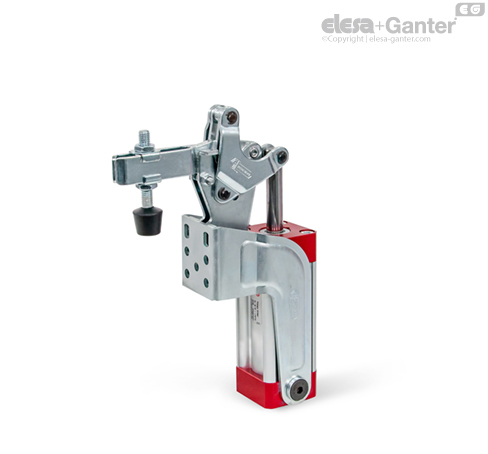

GN 862

Pneumatic toggle clamps

with angled base

GN 862

Pneumatic toggle clamps
Pneumatic toggle clamps

GN 862-APV

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers

GN 862-CPV

Pneumatic toggle clamps
Forked clamping arm, with two flanged washers and clamping screw GN 708.1

GN 862-EPV

Pneumatic toggle clamps
Solid clamping arm, with clasp for welding

GN 862

Pneumatic toggle clamps
Pneumatic toggle clamps

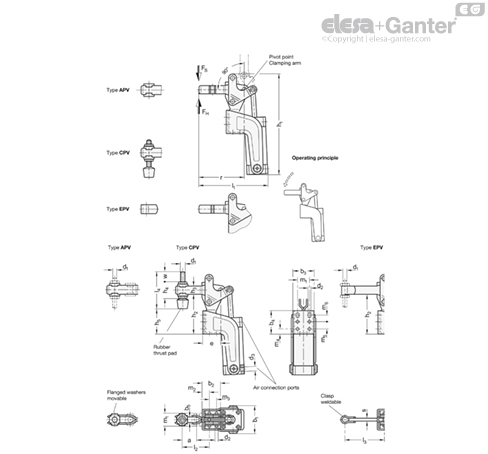

Types

  • Type APV3: U-bar version, with two flanged washers
  • Type CPV3: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type EPV3: Solid bar version, with clasp

Coding

  • Coding M: Magnetic piston

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Bearing pins hardened

Bearing rivets case-hardened

Air cylinder bearing pins

case-hardened

Double-action air cylinder

max. pressure 6 bar

All moving parts

lubricated with special grease

Spindle assembly  GN 708.1, Type A

  • Steel, zinc plated
  • Rubber tip 85 Shore A

The clamping principle of GN 862 pneumatic toggle clamps is identical in construction and dimensions to the manually operated GN 812 vertical toggle clamps-.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar.

GN 862 pneumatic toggle clamps are also available in sizes 200 and up as a version M (magnetic piston). In conjunction with a GN 896.2- proximity switch, the piston position can be sensed and the generated impulse can be used to transmit an electrical signal.

  • Spindle assemblies-
  • GN 801 clamp mounts for toggle clamps (for Type APV3)
  • GN 809 clamp mounts for toggle clamps (for Type EPV3)
