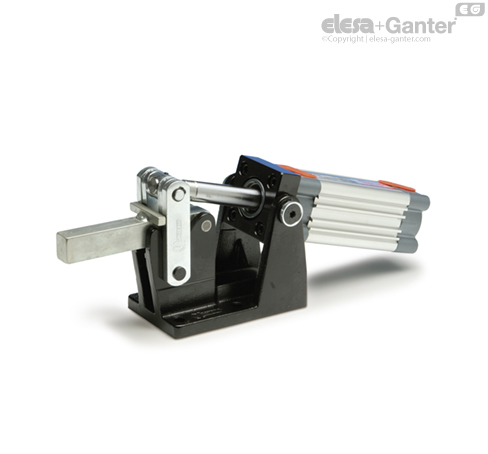

GN 861

Toggle Clamps

with magnetic piston

GN 861

Toggle Clamps
Heavy duty pneumatic toggle clamps

GN 861

Toggle Clamps
Heavy duty pneumatic toggle clamps

Type

  • Type EP: solid clamping arm

Coding

  • Coding M: Magnetic piston

Base

cast steel

black lacquered

other parts

Steel St 60

zinc plated, blue passivated

Bearing pins

case-hardened

Double-action air cylinder

with adjustable cushioning

max. pressure 6 bar

All moving parts

lubricated with special grease

GN 861 heavy duty pneumatic toggle clamps have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified to suit any particular application.

To ensure an extended life of the mechanical parts as well as the air cylinder the operating pressure should not exceed 6 bar. In addition a lubrication control unit should be fitted in the air line.

GN 861 pneumatic toggle clamps are available as version M (magnetic piston). In conjunction with a GN 896.3- proximity switch the piston position is sensed and the generated signal can be used in sequence control systems.
