GN 3380

Sensor

for pneumatically operated clamps / pneumatically operated cylinders

GN 3380

Sensor
Sensor

GN 3380

Sensor
Sensor

Type

  • Type T: for T-groove cylinder

Connection type

  • Connection type S: Plug

Housing

Plastic

Cable (outer sheath)

Polyurethan PUR

Black

Plug

Plastic, 3-pole

Knurled screw connection

  • Brass, nickel plated
  • Freely rotating

Temperature range: -30 °C to +80 °C

Protection class IP 65, IP 67

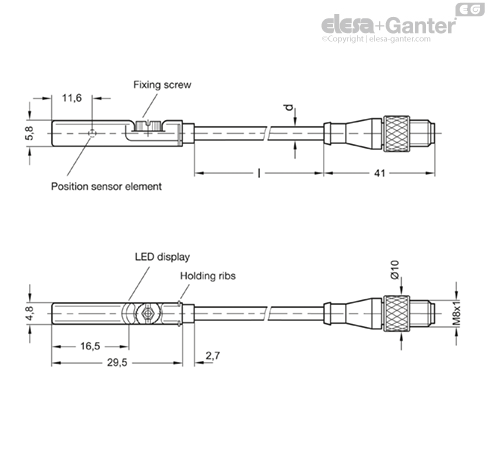

The sensor GN 3380 detects the piston position of pneumatic cylinders with magnetic pistons. Cylinders installed in pneumatic clamps enable the position detection of the clamp itself by means of this sensor. Upon reaching the switch point, the sensor electronics deliver a high signal, for instance to a machine controller, and also indicate this switch state via the integrated LED.

For installation, the sensor is inserted into the cylinder groove from above. The side retaining ribs prevent it from falling out. A quarter turn of the fastening screw quickly and reliably locks the sensor into place in the groove.
