GA11 - GA12
Position indicators
gravity drive, technopolymer
GA11 - GA12
Position indicators
Position indicators
GA11 - GA12
Position indicators
Position indicators

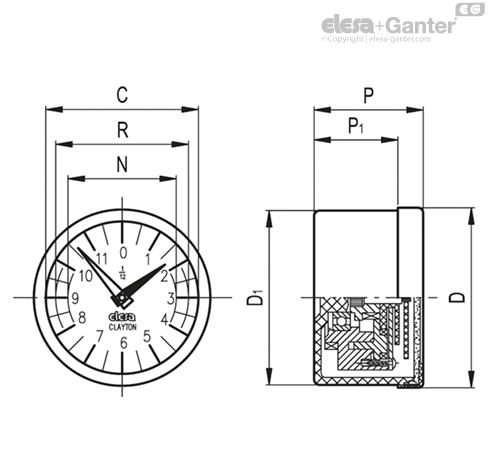

Case
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Moulded-in spindle.
Bezel
Technopolymer. Moulded over the window.
Window
Transparent polyamide based (PA-T) technopolymer (practically unbreakable).
Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).
Dial
Natural matte anodised aluminium.

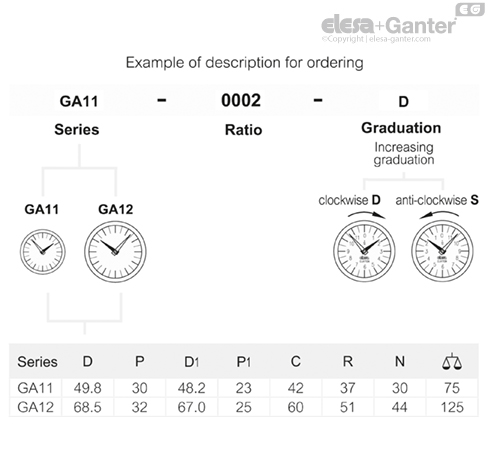

Clockwise (D) or anti-clockwise (S) graduation, black colour.
Reading
The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.
Ballrace rotation: maximum reading accuracy.

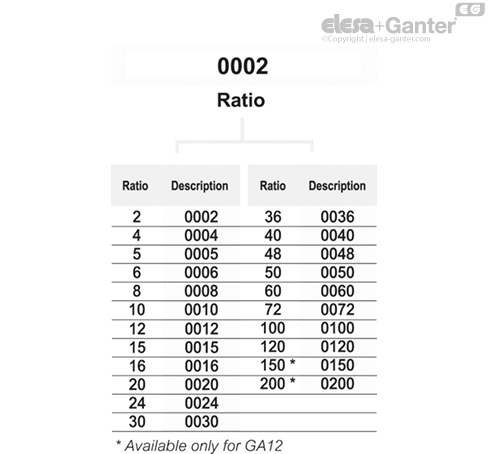

Ratio
To choose the ratio see Gravity position indicators introduction.
IP protection
The ultrasonic welding of the window to the case guarantees the complete sealing with IP 67 protection class, see EN 60529 table.
