VRTP-P-SST
Spoked handwheels with solid section
Technopolymer
VRTP-P+I-SST
Spoked handwheels with solid section
Revolving handle
VRTP-P+IR-SST
Spoked handwheels with solid section
Fold-away handle
VRTP-P+I-SST
Spoked handwheels with solid section
Revolving handle
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).
Boss-cap
AISI 304 stainless steel self-adhesive front plate adhesive suitable for contact with food (FDA CFR.21 and EU 10/2011).
Standard executions
AISI 304 stainless steel boss, H7 reamed hole.
- VRTP-P+I-SST: with revolving handle type I.621+x-SST in polyamide based (PA) technopolymer, certified in compliance with FDA.
- VRTP-P+IR-SST: with fold-away handle type IR.620 in polyamide based (PA) technopolymer, certified in compliance with FDA. AISI 304 stainless steel pin, bushing and internal components, AISI 316L stainless steel support.

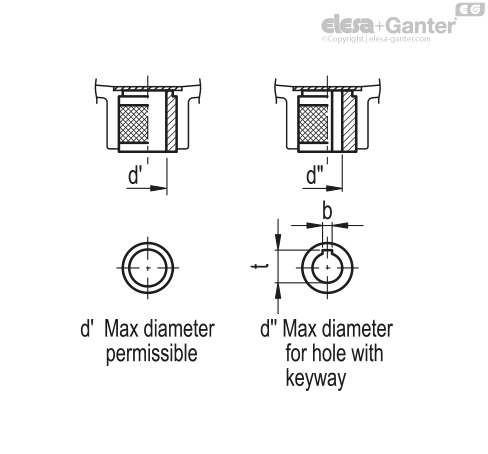

- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
79111-R-K VRTP.80-P+I-SST-8-K
