VDN.FP
Solid handwheels
Duroplast, steel hub
VDN.FP
Solid handwheels
Without handle, plain hub
VDN.FP-A
Solid handwheels
Without handle, drilled hub
VDN.FP+I
Solid handwheels
Revolving handle, plain hub
VDN.FP+I-A
Solid handwheels
Revolving handle, drilled hub
VDN.FP+IR
Solid handwheels
Fold-away handle, plain hub
VDN.FP+IR-A
Solid handwheels
Fold-away handle, drilled hub
VDN.FP+IRS
Solid handwheels
Safety fold-away handle, solid hub
VDN.FP+IRS-A
Solid handwheels
Safety fold-away handle, drilled hub
VDN.FP
Solid handwheels
Without handle, plain hub
Material
High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.
Ring
Matte anodised aluminium.
(ELESA Original design - Reg. U.S. Pat. & TM Off.)
Standard executions
Black-oxide steel hub with H7 reamed hole:
- VDN.FP-A: without handle.
- VDN.FP+I-A: with revolving handle I.301+x in Duroplast.
- VDN.FP+IR-A: with fold-away handle IR.407 in Duroplast.
- VDN.FP+IRS-A: with automatic fold-away safety handle "Fold-O-matic"® type IRS.820 in technopolymer.
- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
73650-10-K VDN.50 FP-A10-K

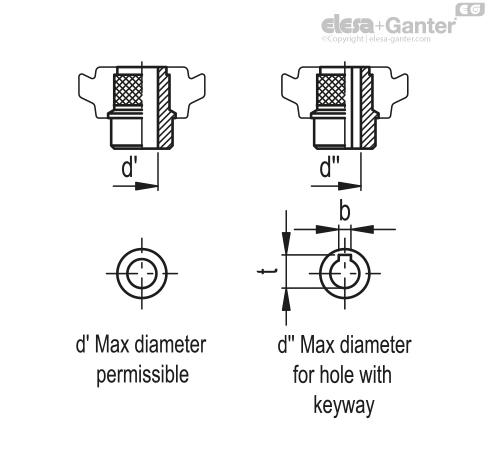

Black-oxide steel hub not drilled in order to make holes different from the standard:
