GN 57.1

Retaining magnets

rectangular-shaped, with female thread, with rubber jacket

GN 57.1-A

Retaining magnets
with 1 female thread

GN 57.1-B

Retaining magnets
with 2 female threads

GN 57.1-A

Retaining magnets
with 1 female thread

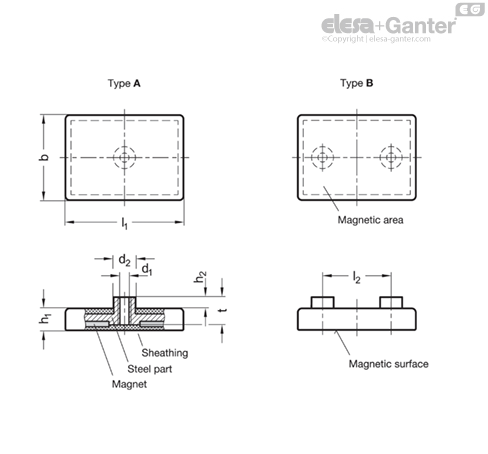

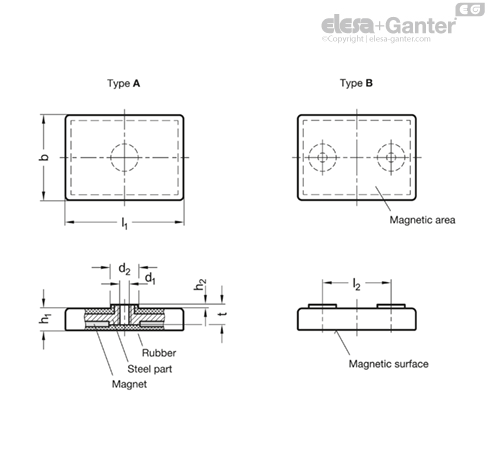

Types

  • Type A: With 1 internal thread
  • Type B: With 2 internal threads

Steel part

Zinc plated

Material of the magnet

NdFeB

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

≈ 80 Shore A

Black SW

White WS

The retaining magnets GN 57.1 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

  • Other colors
  • Other Shore hardnesses
