GN 55.1

Raw Magnets

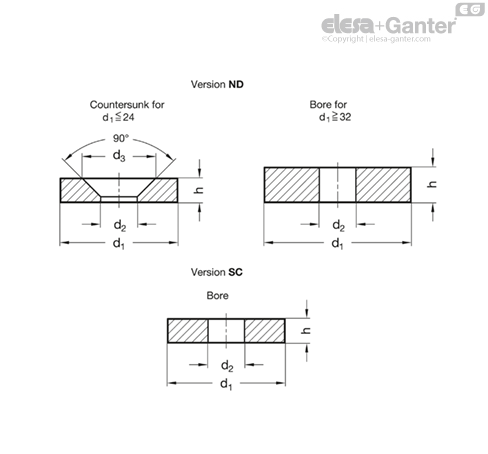

Disk-Shaped, with Bore or Countersunk

GN 55.1

Raw Magnets
Raw magnets

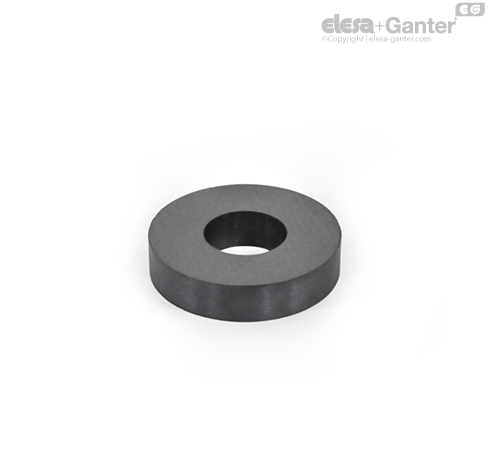

GN 55.1-HF

Raw Magnets
Hard ferrite

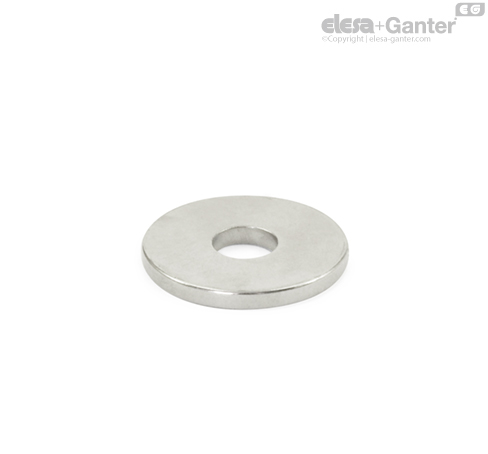

GN 55.1-ND

Raw Magnets
Neodymium, iron, boron

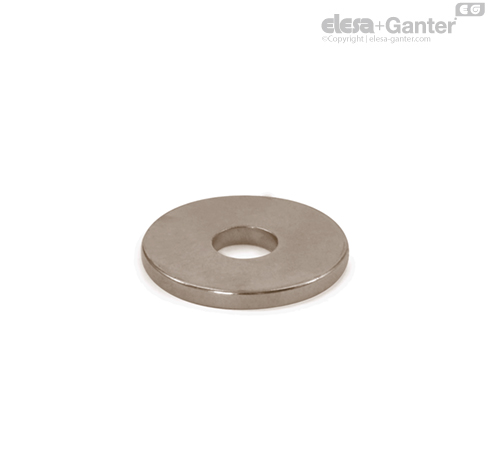

GN 55.1-SC

Raw Magnets
Samarium, cobalt

GN 55.1

Raw Magnets
Raw magnets

Materials of the magnet:

SmCo SC

Samarium, Cobalt

blank

temperature resistant up to 200 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

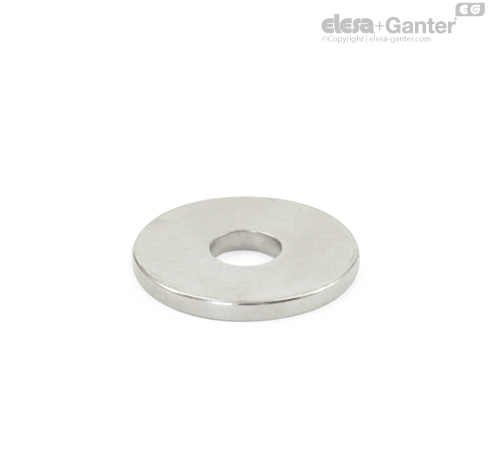

Raw magnets GN 55.1 are unshielded disc-shaped (annular) magnets.

Owing to their vast range of different magnet materials and sizes, they are suitable for virtually universal use. They are mostly attached by gluing.

When used without air gap, individual raw magnets always have lower adhesive forces than a magnet system in which shielding and magnetic return enormously intensify the force acting at the adhesion surface. Depending on the air gap between magnet and mating component, individual raw magnets - unlike magnet systems - can have substantially higher adhesive forces.

In the event that no suitable retaining magnets / magnet systems are available, raw magnets may be used in combination with appropriate holding constructions to build up highly specific magnet systems.

  • made of hard ferrite (HF)
