GN 111.4

Spiral retaining cables

with two key rings

GN 111.4

Spiral retaining cables
Spiral retaining cables

GN 111.4

Spiral retaining cables
Spiral retaining cables

Spriral retaining cable

Plastic (Polyuretan PUR)

Black

Fixing loop

Copper, tin-plated

Key rings

Stainless steel AISI 301

Spiral retaining cables GN 111.4 are used in connection with low weight elements e. g. pins with axial lock and ball lock pins.

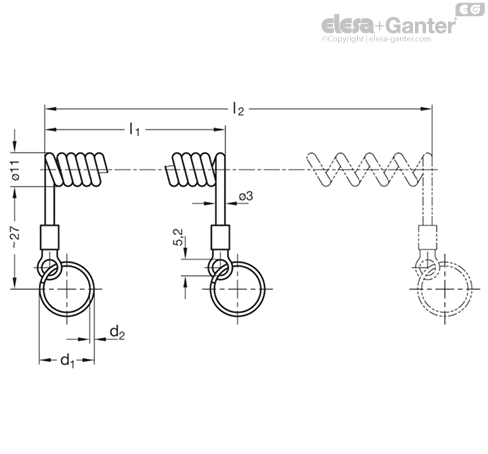

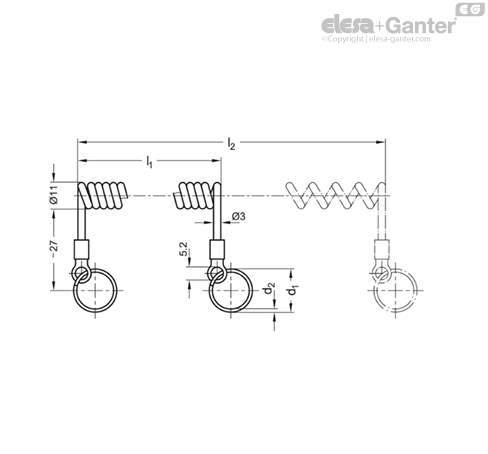

They are distinguished for a large „usalbe length“ l2.

The key rings are supplied unmounted. Both rings have the same Ø d1.

The details on static loads are guide values given without warranty.

Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø:
d1GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10GN 113.5, GN 113.6GN 113.11, GN 113.12GN 114.2, GN 114.3, GN 114.6GN 114.7, GN 114.8GN 114.11, GN 114.12GN 124.1, GN 124.2GN 124.3GN 214.2, GN 214.3, GN 214.6GN 314
145 / 6 / 8all5 / 6 / 8 / 10all6 / 86 / 8 / 10 / 12all2024-10-086 / 8-
1810 / 12 / 16 / 20 / 25-12 / 16-10 / 12 / 16 / 2016 / 20-10 / 1210 / 12 / 16 / 20 / 258 / 10 / 12
24--20 / 25------16 / 20
30----------
