DIN 580

Lifting eye bolts

Steel / Stainless Steel

DIN 580

Lifting eye bolts
Lifting eye bolts

DIN 580-A4

Lifting eye bolts
Lifting eye bolts, Stainless Steel A4

DIN 580-NI

Lifting eye bolts
Lifting eye bolts, Stainless Steel

DIN 580-ST

Lifting eye bolts
Steel

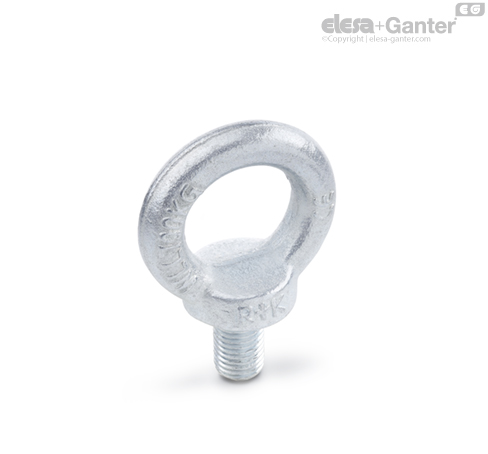

DIN 580

Lifting eye bolts
Lifting eye bolts

Version in Steel ST

  • Steel C 15 E
  • drop-forged
  • annealed
  • contact face machined
  • zinc plated, blue passivated

Version in Stainless Steel A2 NI

  • drop-forged
  • contact face machined

Version in Stainless Steel A4

  • drop-forged
  • contact face machined

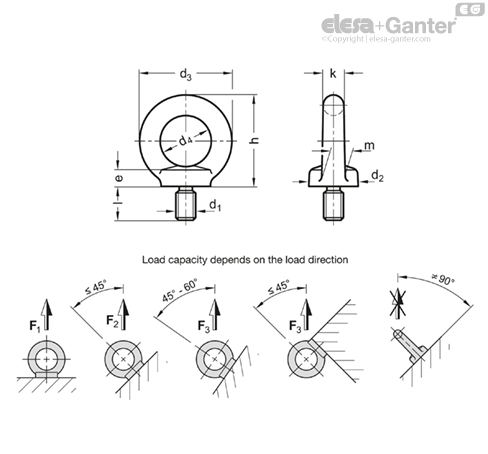

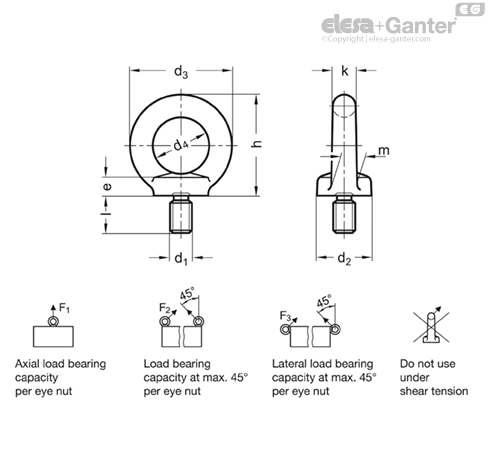

The following guidelines for lifting eye bolts DIN 580 have to be observed in addition to the load values given in the above table:

The eye bolt must be of fully screwed in to achieve a perfect contact between the two mating faces.

Both threads must be of a equal length and the base material of equal strength to that of the bolt.

Operating instructions with more details and specifications are included with every delivery.

The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72 x 6, M80 x 6 and M100 x 6.
