GN 251.2

Setting bolts

with limit switch

GN 251.2

Setting bolts
Setting bolts

GN 251.2

Setting bolts
Setting bolts

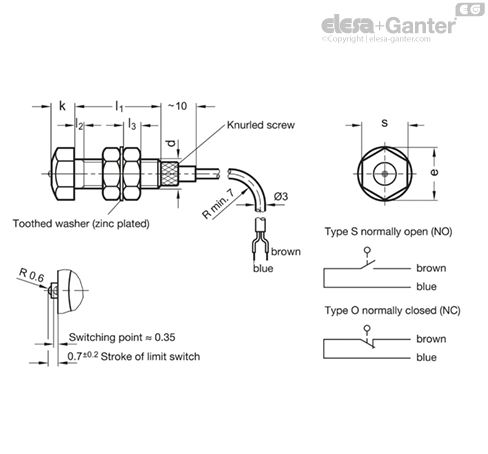

Types

  • Type S: Normally open
  • Type O: Normally closed

Bolt Steel

  • Tensile strength class 5.8
  • Hexagon head hardened to HRC 45
  • nickel plated

Hexagon nuts Steel

nickel plated

End limit switch

  • Voltage: 5 ... 24 V DC
  • Switching load recom.: 5-10 mA
  • Switching load: 20 mA DC max.
  • Life expectancy: 3 mio. operations
  • Temperature range: -10 °C ... +80 °C
  • Load: ~1 N

Supply cable PVC:

  • Ø 3 ; 2-phase, ~ 2 meters long
  • max. tensile load 30 N
  • grey for Type S (normally open)
  • black for Type O (normally closed)

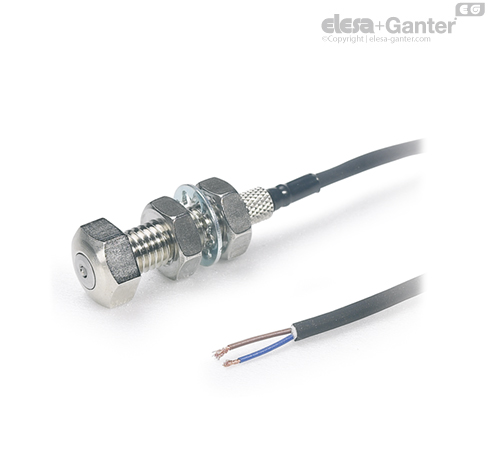

Setting bolts GN 251.2 are supplied with a hardened round head which serves as a firm end stop.

In general these bolts are installed with a locknut.

When the workpiece contacts the bolt head an electrical signal is transmitted by means of the limit switch.

By means of the knurled nut, the limit switch can be installed resp. taken out without having the need to loosen the setting bolt.

Operating instructions showing more important technical information are included with every setting bolt.
