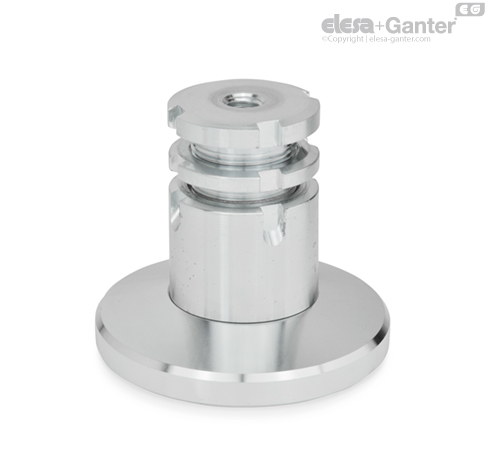

GN 360

Levelling set

Steel / Stainless Steel

GN 360

Levelling set
Steel

GN 360-NI

Levelling set
Stainless Steel

GN 360-ST

Levelling set
Steel

GN 360

Levelling set
Steel

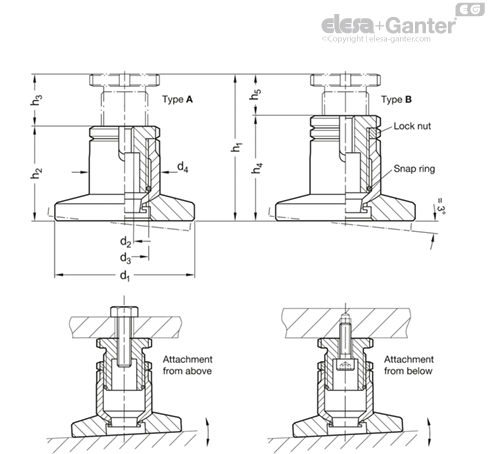

Types

  • Type A: without lock nut
  • Type B: with lock nut

Version in Steel

Steel ST

zinc plated, blue passivated

Version in Stainless Steel NI

Stainless Steel AISI 304

GN 360 levelling sets are used for leveling and to compensate for any slope when setting up machines and systems.

The thread d2 can also be used as a through-hole for attachment from below. The fine thread d3 laws precise adjustment and readjustment using a DIN 1810 C-Spanner. A circlip limits the maximum path of adjustment.

  • C-Spanner DIN 1810 (code no. see table)
