GN 350.5

Levelling sets

Steel / Stainless Steel, with spherical washer, with locknut

GN 350.5

Levelling sets
Levelling sets

GN 350.5-NI

Levelling sets
Levelling sets, Stainless Steel

GN 350.5

Levelling sets
Levelling sets

Version in Steel

Steel, 1.7225 (42 CrMo 4V) ST

zinc plated, blue passivated

Version in Stainless Steel

Stainless Steel AISI 303

(X 10 CrNiS 18-9) NI

F1: max. total load

F2: max. load after deduction of the max. preload

  • for screws 8.8 µ = 0.125 (Steel version)
  • for screws 6.8 µ = 0.14 (Stainless Steel version)

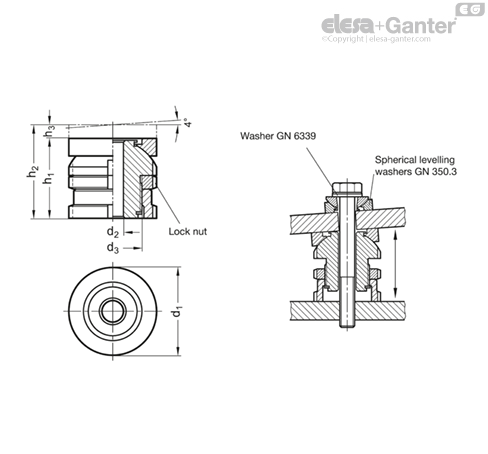

Levelling sets GN 350.5 are used for levelling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.

They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.

  • C-Spanner DIN 1810 (code no. see table)
