GN 187.4

Serrated locking plates

Steel / Stainless Steel

GN 187.4

Serrated locking plates
Steel

GN 187.4-NI

Serrated locking plates
Stainless Steel

GN 187.4

Serrated locking plates
Steel

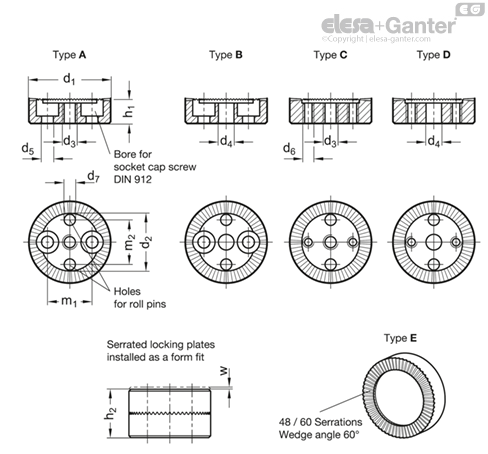

Types

Type A: with tapped hole d3

in the centre, with two countersunk holes

for socket head cap screws

Type B: with bore d4 in the centre,

with two countersunk holes

for socket head cap screws

Type C: with tapped hole d3

in the centre, with two tapped mounting holes

Type D: with bore d4 in the centre,

with two tapped mounting holes

Type E: without bores

blank, not hardened

Version in Sintered Steel (Distaloy AB) ST

hardened, black oxidised with vapor

Version in Stainless Steel (Sintered Steel) NI

AISI 316L

With the aid of serrated locking plates GN 187.4 standard components can be interlocked and firmly set at a defined angle.

The angular position of the fixing bores in relation to the serrations is not defined in the standard design. The exact positioning is available as special design.

The range of designs makes these plates adapt-able for almost any application in this particular field. To complement these serrated locking plates, accessories such as guide pots GN 187.1  and thrust springsGN 187.2  are useful additional standard parts.
