GN 103.3

Trapezoidal Lead Nuts

Steel / Stainless Steel / Gunmetal / Plastic, Single- or Multi-Start, Cylindrical

GN 103.3-NI

Trapezoidal Lead Nuts
Stainless Steel

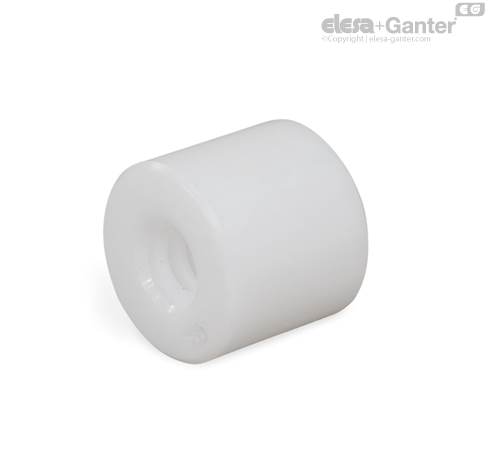

GN 103.3-POM

Trapezoidal Lead Nuts
Plastic

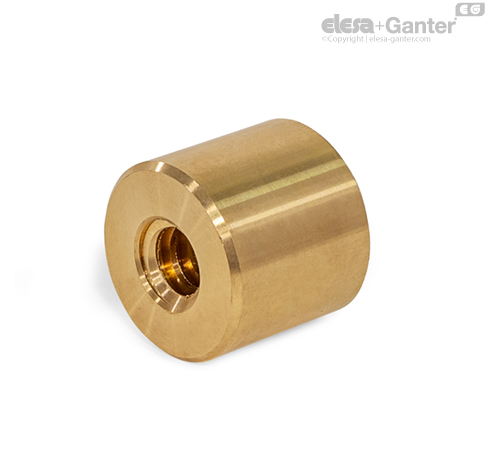

GN 103.3-RG

Trapezoidal Lead Nuts
Gunmetal

GN 103.3-ST

Trapezoidal Lead Nuts
Steel

GN 103.3-NI

Trapezoidal Lead Nuts
Stainless Steel

Lead direction

  • RH: Right-hand thread
  • LH: Left-hand thread

Identification no.

  • No. 1: Short version (Material ST / NI)
  • No. 2: Long version (Material ST / RG / POM)

Steel 1.0718 ST

Stainless steel AISI 303 NI

Gunmetal (Rg7) RG

Plastic, Polyacetal POM

  • White
  • Temperature resistant up to 90 °C

Trapezoidal lead nuts GN 103.3 are used together with trapezoidal lead screws GN 103. The nuts are available in various lengths depending on the material and the resulting strength. The nuts can be fastened via individually machined surfaces, grooves or threads on the flat surfaces or on the circumference.

To minimize wear, the trapezoidal lead nuts should be lubricated. However, if lubrication is insufficient, the bronze alloy (gunmetal) generally has emergency running properties. Steel and stainless steel nuts are primarily used for sporadic adjustments.

  • Trapezoidal Lead Screws GN 103
