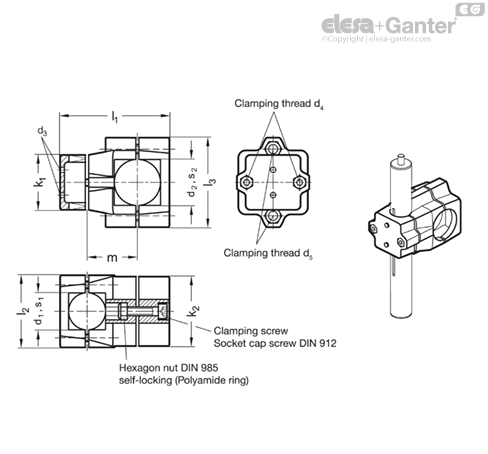

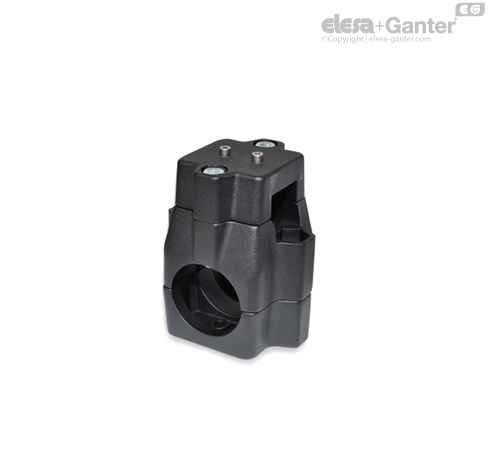

GN 135.1

Two-Way Linear Actuator Connectors

Aluminum, Multi Part Assembly, Unequal Bore Dimensions d1 / s1 and d2 / s2

GN 135.1

Two-Way Linear Actuator Connectors
Linear actuator connectors

GN 135.1-B-B

Two-Way Linear Actuator Connectors
Bore-Bore

GN 135.1-B-S

Two-Way Linear Actuator Connectors
Bore-Square

GN 135.1-S-B

Two-Way Linear Actuator Connectors
Square-Bore

GN 135.1-S-S

Two-Way Linear Actuator Connectors
Square-Square

GN 135.1

Two-Way Linear Actuator Connectors
Linear actuator connectors

Identification No.

No. 2: with 4 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black, RAL 9005, textured finish SW

Clamping bores not machined

Fastening elements / Transfer elements

  • Socket cap screws DIN 912
  • Hexagon nuts DIN 985
  • Centering bushings, follower

Stainless Steel AISI 304

GN 135.1 Linear actuator connectors are normally supplied mounted only in connection with a square linear actuator and for function control.

The fixing bores for the follower are always located in the lid of the bore d1 and/or the square s1. Centering bushings in the through-hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators.

The square s2 of the linear actuator connector is supplied not machined in the standard design.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits  GN 911  (article code see table of dimensions).

  • Linear actuator connectors with little play
  • other bore and square combinations
