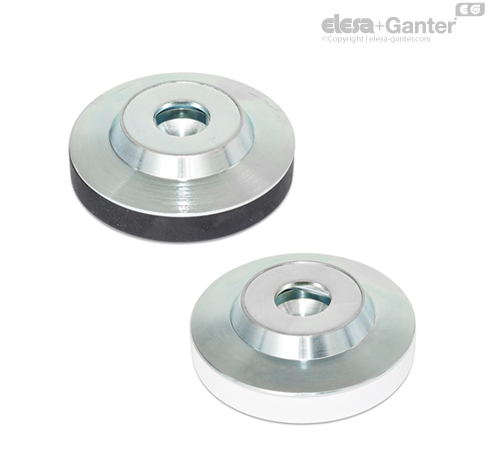

GN 6311.3

Foot Plates

for Grub Screws DIN 6332 / for Tommy Screws DIN 6304 / DIN 6306, Steel

GN 6311.3

Foot Plates
Foot plates

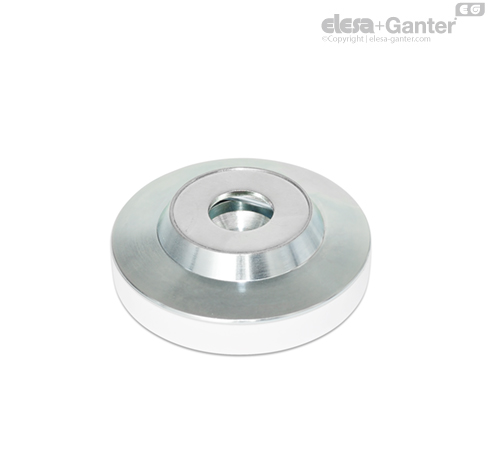

GN 6311.3-G

Foot Plates
With plastic cap, gliding

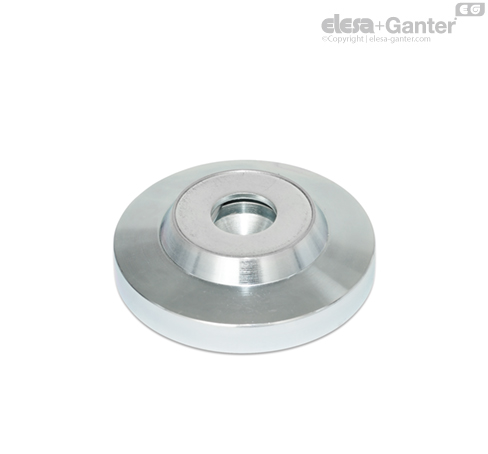

GN 6311.3-N

Foot Plates
Without plastic cap

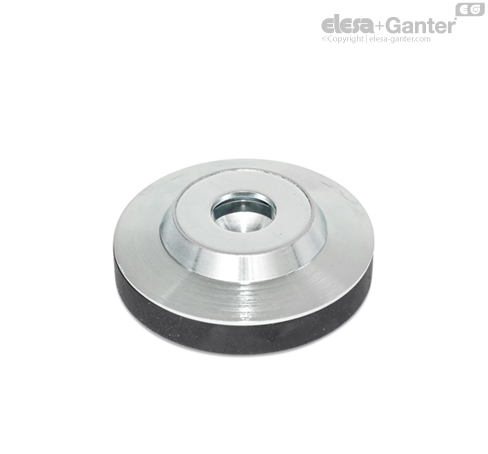

GN 6311.3-R

Foot Plates
With plastic cap, non-gliding

GN 6311.3

Foot Plates
Foot plates

Types

  • Type OS: without plastic cap
  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding

Steel

zinc plated, blue passivated

Snap ring

Spring steel wire

zinc plated, blue passivated

Plastic caps

Type KS

Technopolymer (Polyacetal POM)

white (natural colour) RAL 9001

Type KR

Elastomer (TPE)

Hardness 78 Shore A ≈

black

Foot plates GN 6311.3 are used in connection with screws with pivots (grub screws DIN 6332 , tommy screws DIN 6304 , DIN 6306 for installing and leveling devices and mechanisms.

Owing to the special shape of immovable retaining ring, the foot plate is easily plugged into and removed from, the pivot.

The types KS and KR with plastic cap prevent damage to sensitive surfaces.Due to the large plate diameter d1, the contact pressure remains within tolerable limits.
