GN 4490

Ball catches

GN 4490

Ball catches
Ball catches

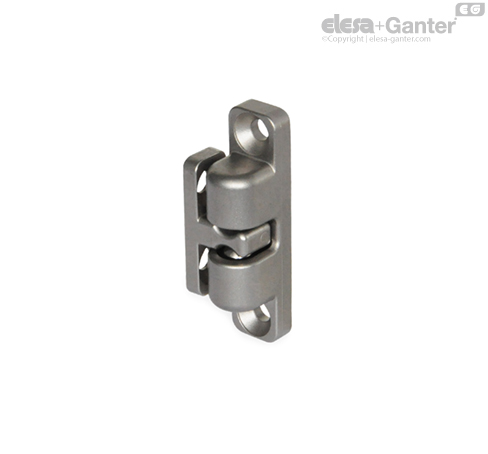

GN 4490-NIK

Ball catches
Stainless Steel

GN 4490-ZD

Ball catches
Zinc die casting

GN 4490

Ball catches
Ball catches

Identification no.

  • No. 1: standard holding force
  • No. 2: high holding force

Zinc die casting ZD

plastic coated

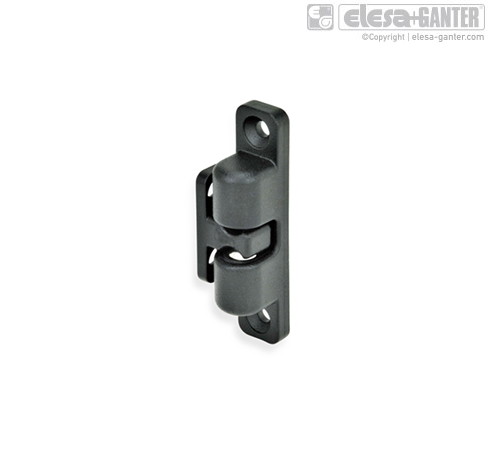

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Ball

Stainless Steel A2

Spring

Stainless Steel AISI 301

Ball guide

Plastic

Ball catches GN 4490 are used, for example, to hold flaps and doors closed that must be opened and closed frequently and easily.

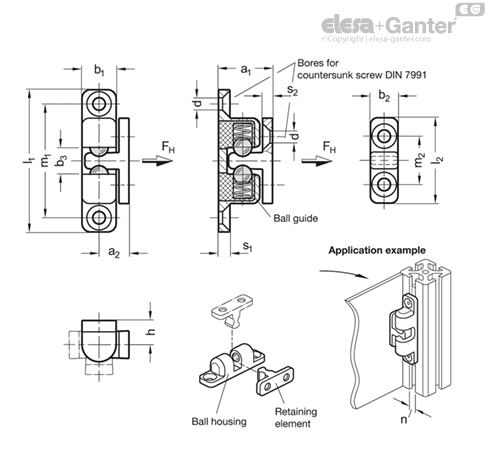

They consist of a ball housing and a retaining element that engages in the ball housing from the side or front. The installation orientation can be chosen as desired.

Beyond the typical uses, these solid and attractively designed ball catches are also utilized in technical environments. For example, thanks to the centered 90° countersunk holes, they can also be used with profile systems.

  • other colors
