GN 415

Side thrust pins

GN 415-A1

Side thrust pins
Cylinder, vertical

GN 415-A2

Side thrust pins
Cylinder, horizontal

GN 415-B1

Side thrust pins
Wedge, top

GN 415-B2

Side thrust pins
Wedge, down

GN 415-B3

Side thrust pins
Wedge, right

GN 415-B4

Side thrust pins
Wedge, left

GN 415-A1

Side thrust pins
Cylinder, vertical

Types

  • Type A1: Cylinder, vertical
  • Type A2: Cylinder, horizontal
  • Type B1: Wedge, top
  • Type B2: Wedge, down
  • Type B3: Wedge, right
  • Type B4: Wedge, left

Identification no.

  • No. 1: standard spring load
  • No. 2: high spring load

Housing

Zinc die casting ZD

plastic coated

black, RAL 9005, matte, textured finish

Thrust pin

Plastic, smooth KG

Plastic POM, black

Stainless Steel, smooth NG

metal injection molded AISI 630

Stainless Steel, ribbed NR

metal injection molded AISI 630

Spring

Stainless Steel AISI 301

Screw

  • Steel, zinc nickel coated (Version KG)
  • Stainless Steel, A2 (Version NG / NR)

Side thrust pins GN 415 have a compact design and offer maximum flexibility for tensioning and holding parts. A variety of thrust pin designs as well as two different spring forces are available.

Depending on the installation situation, the side thrust pins offer a pull-down effect operating within height h2. They are fastened by means of holes or slots.

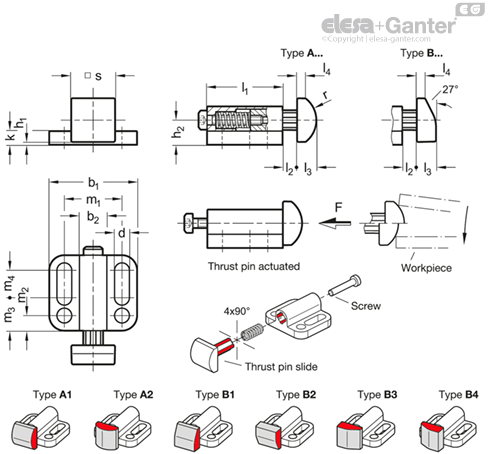

The side thrust pins are installed fully assembled. If necessary, the installation position of the thrust pin slide can be rotated by 4x90° according to the sketch. When installing version KG, the shaped thread in the plastic slider should be reused and the tightening torque limited.
