GN 214.2

Locking pins

with axial lock (Pawl)

GN 214.2

Locking pins
Locking pins

GN 214.2

Locking pins
Locking pins

Pin

Steel

zinc plated, blue passivated

Pawl

Stainless Steel sheet metal AISI 304

Lifting ring

Stainless Steel AISI 301

Push button / Slide

Plastic

  • temperature resistant up to 80 °C
  • Push button red

Spring

Stainless Steel AISI 301

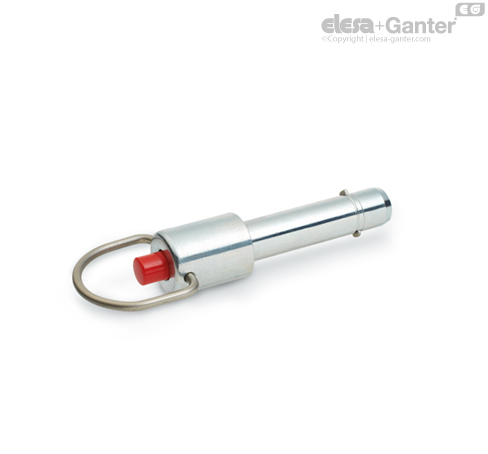

Locking pins with axial lock GN 214.2 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and replaced again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
