GN 114.3

Stainless Steel-Locking pins

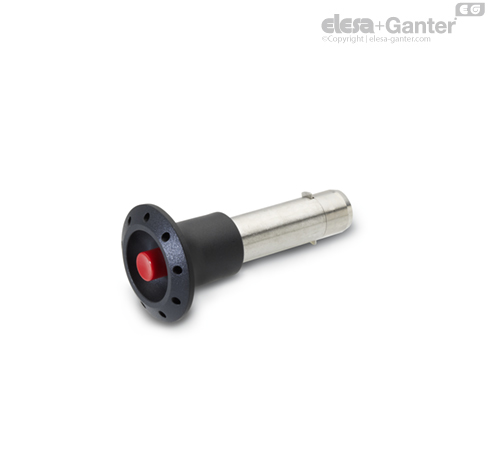

Stainless Steel Pin, with Axial Lock (Pawl)

GN 114.3

Stainless Steel-Locking pins
Stainless Steel-Locking pins

GN 114.3

Stainless Steel-Locking pins
Stainless Steel-Locking pins

Knob / Push button / Slide

  • Plastic
  • Temperature resistant up to 80 °C
  • Knob: black-gray
  • Push button: red

Pin

Stainless steel AISI 303

Pawl

Stainless Steel AISI 304 (sheet metal)

Pressure spring

Stainless steel AISI 301

Locking pins with axial lock GN 114.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
