GN 818

Stainless Steel-Indexing plungers

AISI 316 (A4), with and without rest position

GN 818-B

Stainless Steel-Indexing plungers
without rest position, with Plastic-Knob, without lock nut

GN 818-BK

Stainless Steel-Indexing plungers
without rest position, with Plastic-Knob, with lock nut

GN 818-BKN

Stainless Steel-Indexing plungers
without rest position, with Stainless Steel-Knob, with lock nut

GN 818-BN

Stainless Steel-Indexing plungers
without rest position, with Stainless Steel-Knob, without lock nut

GN 818-C

Stainless Steel-Indexing plungers
with rest position, with Plastic-Knob, without lock nut

GN 818-CK

Stainless Steel-Indexing plungers
with rest position, with Plastic-Knob, with lock nut

GN 818-CKN

Stainless Steel-Indexing plungers
with rest position, with Stainless Steel-Knob, with lock nut

GN 818-CN

Stainless Steel-Indexing plungers
with rest position, with Stainless Steel-Knob, without lock nut

GN 818-B

Stainless Steel-Indexing plungers
without rest position, with Plastic-Knob, without lock nut

Types

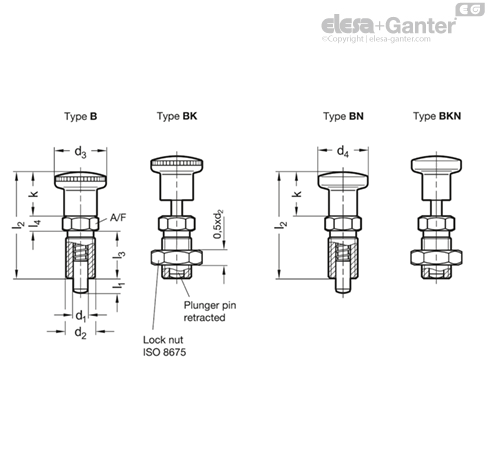

  • Type B: without rest position, with Plastic-Knob, without lock nut
  • Type BK: without rest position, with Plastic-Knob, with lock nut
  • Type BN: without rest position, with Stainless Steel-Knob, without lock nut
  • Type BKN: without rest position, with Stainless Steel-Knob, with lock nut

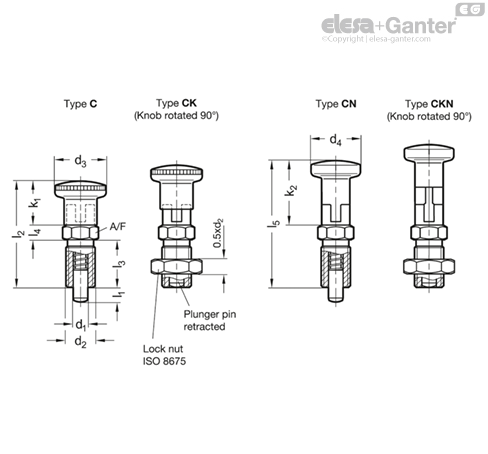

  • Type C: with rest position, with Plastic-Knob, without lock nut
  • Type CK: with rest position, with Plastic-Knob, with lock nut
  • Type CN: with rest position, with Stainless Steel-Knob, without lock nut
  • Type CKN: with rest position, with Stainless Steel-Knob, with lock nut

Stainless Steel AISI 316 A4

Plunger pin chemically nickel plated

Knob

  • Plastic (Type B / BK / C / CK)
  • Polyamide (PA)
  • black, matte

Stainless Steel (Type BN / BKN / CN / CKN)

AISI 316

not removable

Spring

Stainless Steel AISI 316 Ti

GN 818 Stainless Steel-Indexing plungers are set apart by the materials used, allowing these plungers to withstand particularly corrosive environments.

Indexing plungers with a rest position are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
