GN 817.6

Stainless Steel-Indexing plungers

with sensor for position monitoring

GN 817.6

Stainless Steel-Indexing plungers
Stainless Steel-Indexing plungers

GN 817.6

Stainless Steel-Indexing plungers
Stainless Steel-Indexing plungers

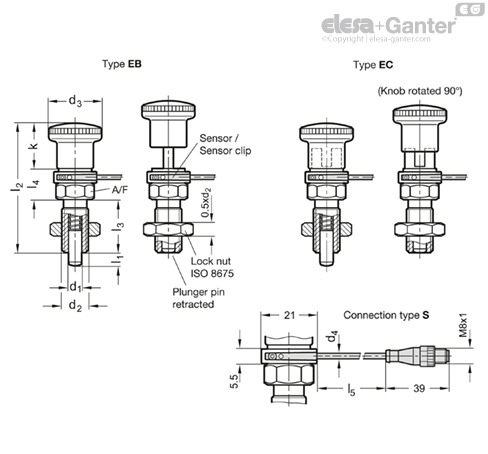

Types

  • Type EB: with engagement monitoring, without rest position
  • Type EC: with engagement monitoring, with rest position

Connection type

  • Connection type S: Plug

Stainless Steel

  • AISI 303
  • Plunger pin chemically nickel plated

Knob, Plastic (Polyamide PA)

  • black, matte
  • not removable

Magnet

Hard ferrite

Sensor / Sensor clip

Plastic (Polyamide PA), black, matte

Cable (Outer sheath)

Polyurethan PUR, black

Hexagon nut ISO 8675

Stainless Steel A2

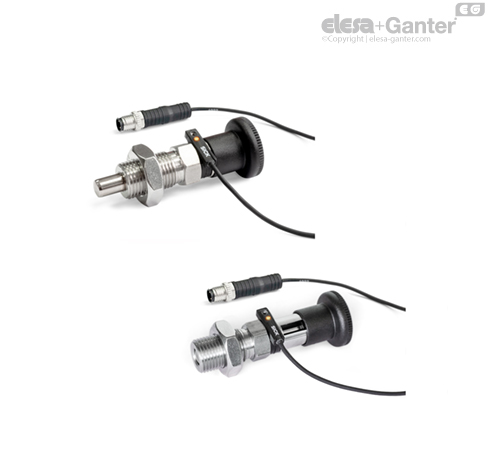

Stainless Steel-Indexing plungers GN 817.6 with sensor for position monitoring allow for electronic monitoring of the plunger pin state. For this purpose, a magnet is integrated into the plunger pin that switches the sensor upon engaging after approx. 2/3 of the locking distance l1.

The sensor electronics then outputs a high signal, e.g. to a machine control, and additionally indicates this switch state with an LED on the sensor.

To prevent faults, no external magnetic fields should be acting on the indexing plunger. The Stainless Steel-Indexing plungers GN 817.6 are delivered with enclosed sensor, sensor clip, Allen® wrench and a hexagon nut.



The position of the sensor cable can be chosen freely during installation of the sensor clip.

Installation steps:

1. Insert the sensor into the sensor clip from the side.

2. Tighten the hexagon socket screw of the sensor.

3. Clip the sensor clip into the ring groove of the indexing plunger in any orientation and then adjust the direction by turning, if necessary.
