GN 724.6

Indexing Plungers

Steel / Stainless Steel, with Chamfered Pin, with Flange for Surface Mounting

GN 724.6-NI

Indexing Plungers
Stainless Steel

GN 724.6-ST-SW

Indexing Plungers
Steel, zinc plated, powder coated

GN 724.6-ST-ZB

Indexing Plungers
Steel, zinc plated, blue passivated

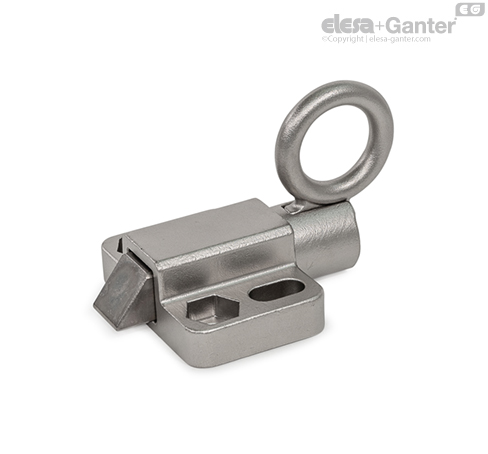

GN 724.6-NI

Indexing Plungers
Stainless Steel

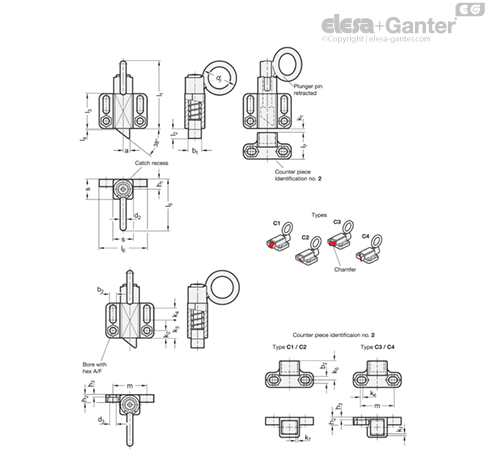

Types
  • Type C1: Chamfer, top
  • Type C2: Chamfer, bottom
  • Type C3: Chamfer, right
  • Type C4: Chamfer, left
Identification no.
  • No. 1: Without counter piece
  • No. 2: With counter piece
Guide / Counter piece
  • Steel precision casting
  • Zinc plated, blue passivated ZB
  • Zinc plated and powder coated
  • Black, RAL 9005, textured finish SW
  • Stainless steel precision casting AISI CF-8 NI
Pull ring
  • Steel precision casting
  • Zinc plated, blue passivated (for ZB and SW)
  • Stainless steel precision casting AISI CF-8 (for NI)
Plunger pin
  • Steel, hardened
  • Zinc plated, blue passivated (for ZB and SW)
  • Stainless steel AISI 431, hardened (for NI)
Compression spring

Stainless steel AISI 316Ti

Indexing plungers GN 724.6 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When the object to be secured moves towards the chamfer, the plunger pin is pushed back into the guide, allowing grooves and edges to pass over the pin. The plunger pin engages automatically in the direction of the latching surface.

The latching can be released by pulling the pull ring by hand or with a cable or pull rod using a hook. The types with rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the plunger pin has been retracted. The ring is held in this position by the catch recess at the top of the guide.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.

For fastening, slotted or hex mounting holes allow the use of socket cap screws DIN 912 and hex head screws or nuts according to DIN 931 or DIN 934.
