GN 617.1

Indexing plungers

Steel / Stainless Steel with rest position

GN 617.1

Indexing plungers
Steel with Plastic knob

GN 617.1-NI

Indexing plungers
Stainless Steel with plastic knob

GN 617.1-ST

Indexing plungers
Steel with Plastic knob

GN-617.1-NI

Indexing plungers
Stainless Steel knob

GN 617.1

Indexing plungers
Steel with Plastic knob

Types

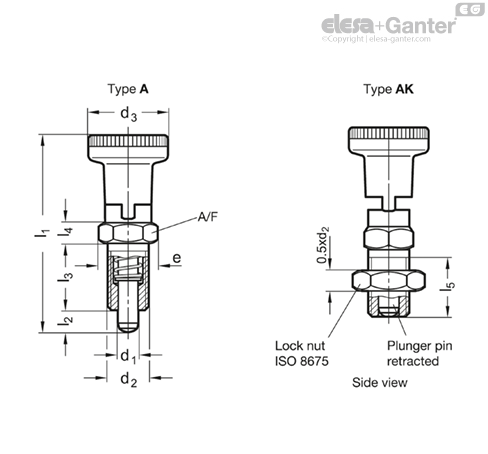

  • Type A: with Plastic-Knob, without lock nut
  • Type AK: with Plastic-Knob, with lock nut

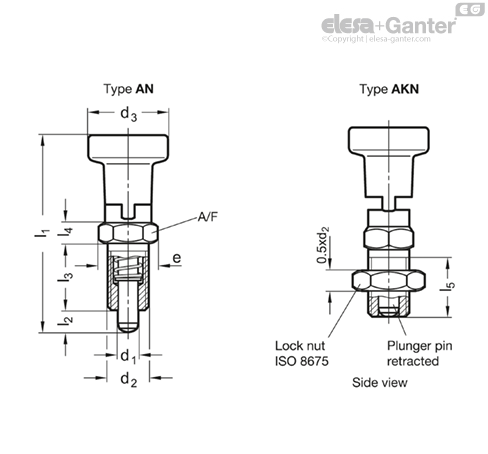

  • Type AN: with Stainless Steel-Knob, without lock nut
  • Type AKN: with Stainless Steel-Knob, with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob Type A / AK

  • Plastic (Polyamide PA)
  • black, matt
  • not removable

Knob Type AN / AKN

  • Stainless Steel AISI 303
  • not removable

Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted.

A notch keeps the plunger in this position.
