GN 417

Indexing plungers

with Lifting Ring / with Wire Loop / with Knob, with and without Rest Position

GN 417

Indexing plungers
Indexing plungers, wihout rest position

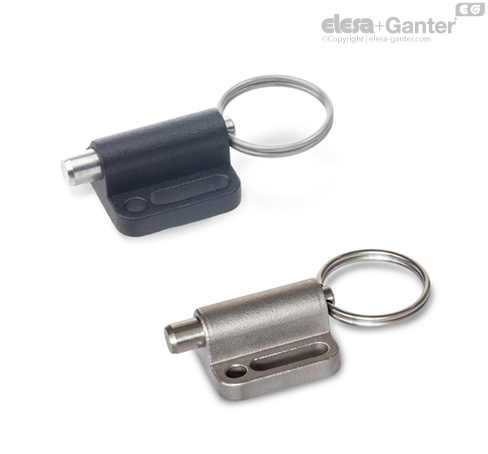

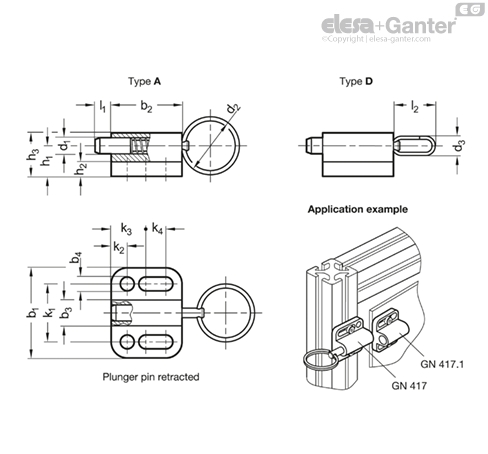

GN 417-A

Indexing plungers
With lifting ring

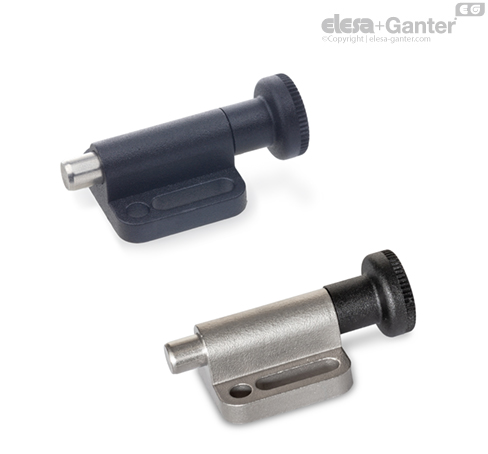

GN 417-B

Indexing plungers
Without rest position, with knob

GN 417-C

Indexing plungers
Indexing plungers, with rest position

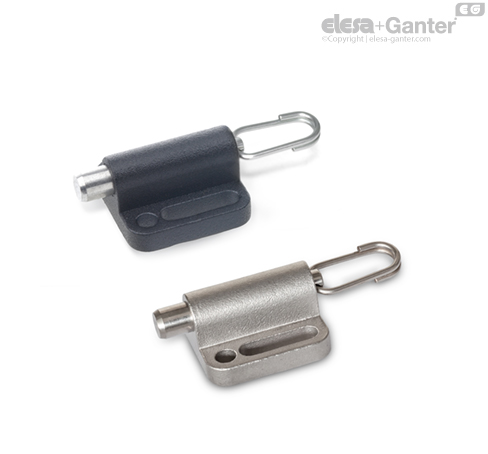

GN 417-D

Indexing plungers
With wire loop

GN 417

Indexing plungers
Indexing plungers, wihout rest position

Version without rest position

Types

  • Type A: without rest position (lifting ring)
  • Type B: without rest position (Knob)

Version with rest position

Type

  • Type C: with rest position (Knob)

This information applies to both standards:

Guide

Zinc die casting

plastic coated

black, textured finish

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Lifting ring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

The screwing range of indexing plungers GN 417 is chosen in such a way that washers ISO 7092 can be used.

Indexing plungers GN 417 type C with rest position are used in such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
