GN 313

Spring bolts

Steel / Stainless Steel, Pin retracted in normal position

GN 313

Spring bolts
Spring bolts, Steel

GN 313-NI

Spring bolts
Spring bolts, Stainless Steel

GN 313

Spring bolts
Spring bolts, Steel

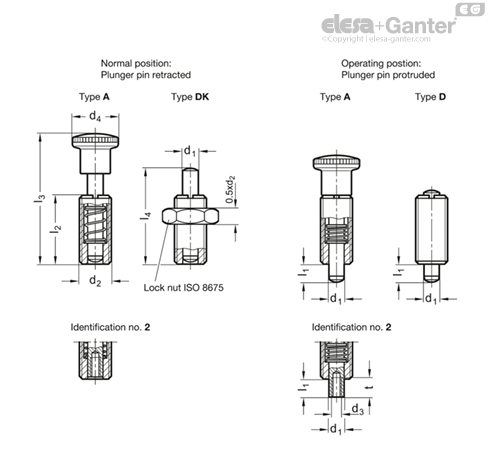

Types

  • Type A: with knob, without lock nut
  • Type AK: with knob, with lock nut
  • Type D: without knob, without lock nut
  • Type DK: without knob, with lock nut

Identification no.

  • Version 1: Plunger without internal thread
  • Version 2: Plunger with internal thread

Guide (Threaded socket)

Steel ST

blackened

Guide (Threaded socket)

Stainless Steel AISI 303 NI

Plunger pin Stainless Steel

  • AISI 303
  • chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

The pin of the spring bolts GN 313 does not protrude in the inoperative position.

It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.

The screw drivers GN 613.1 (available as accessory) shorten the assembly time and make it easier to hold the mechanism in place while fixing the lock nut.

The screw driver is inserted in the side between the knob and guide, where it engages the slot in the guide.

Screwdrivers GN 613.1 (Code no. see table)
