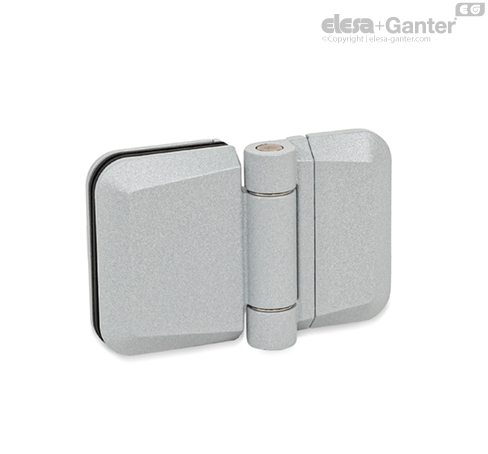

GN 938

Hinges

Zinc Die Casting, for Panels (Door Panes)

GN 938

Hinges
Hinges

GN 938

Hinges
Hinges

Zinc die casting ZD

Powder coated

  • Black, RAL 9005, textured finish SW
  • Silver, RAL 9006, textured finish SR

Hinge pin

Stainless steel AISI 303

Shim washers

Stainless steel AISI 316L

Clamping screws

Stainless steel AISI 304

Spacer sleeves

Plastic (Polyamide PA)

Rubber inserts

Elastomer (TPE)

Hinges GN 938 are used to fasten door panes, e.g. made of glass or plastic, so that they can rotate. They are designed to match the panel support clamp GN 939.

The panels (door panes) are clamped between the rubber inserts and additionally secured with spacer sleeves, forming a positive connection.

If the hinges are used with profile systems with 6, 8 or 10 mm slots, T-nuts GN 938.1 are available as mounting accessories. These make it easy to align the hinges and protect them from twisting.

The covers are supplied loose. They are slid on sideways after assembly and lock into place automatically.

  • Other colors
