GN 237-extended

Hinges

Zinc die casting / Stainless Steel, extended, horizontally elongated

GN 237-NI-extended

Hinges
Stainless Steel-Hinges with extended hinge wings

GN 237-ZD-extended

Hinges
Hinges with extended hinge wings

GN 237-NI-extended

Hinges
Stainless Steel-Hinges with extended hinge wings

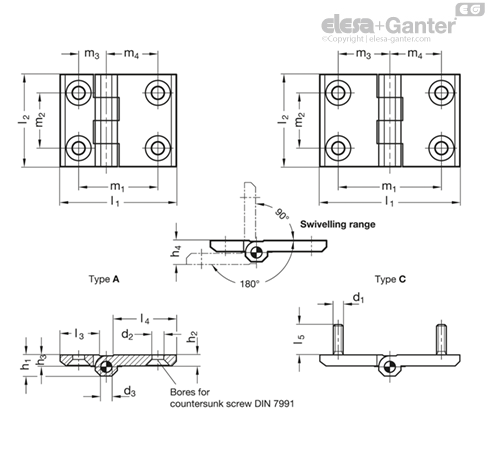

Types

  • Type A: 2x2 bores for countersunk screws
  • Type C: 2x2 threaded studs

Version in Zinc die casting ZD

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Pin, Stainless Steel AISI 303 (A2)

Threaded stud (type C)

Stainless Steel AISI 316

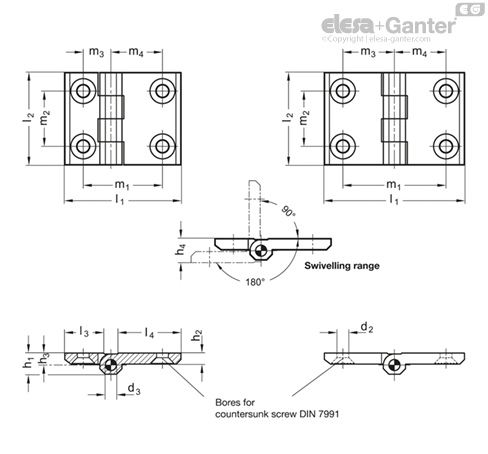

Version in Stainless Steel (only type A) NI

  • AISI CF-8
  • matt shot-blasted GS

Pin, Stainless Steel AISI 316Ti (A4)

Hinges GN 237 with extended hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the attachment bore holes.
