GN 237
Hinges
Zinc die casting / Stainless Steel / Aluminum
GN 237-A4
Hinges
Stainless Steel
GN 237-AL
Hinges
Aluminum
GN 237-NI
Hinges
Stainless Steel
GN 237-ZD
Hinges
Zinc die casting
GN 237-A4
Hinges
Stainless Steel

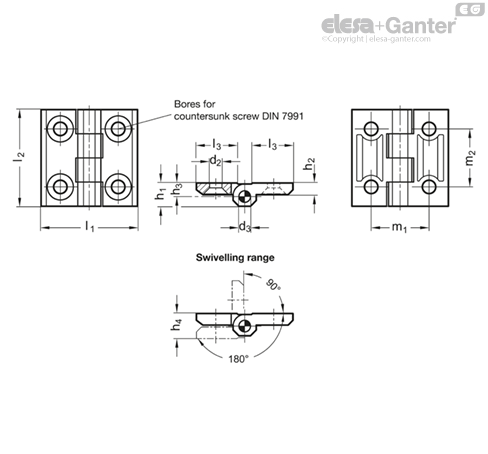

Types
- Type A: 2x2 bores for countersunk screws
- Type C: 2x2 threaded studs
Version in Zinc die casting
Zinc die casting ZD
plastic coated
- black, RAL 9005, textured finish SW
- silver, RAL 9006, textured finish SR
- chrome-plated CR
Pin, Stainless Steel AISI 303
Threaded stud (Type C), Stainless Steel AISI 316
Version in Stainless Steel
- AISI CF-8 NI
- German Material No. 1.4408 A4
- matt shot-blasted GS
Pin, Stainless Steel AISI 316Ti
Threaded stud (Type C), Stainless Steel AISI 316 for ZD and AL Stainless Steel AISI CF-8, casted "in one piece"
Version in Aluminum
Aluminum AL
anodized, natural colour EL
Pin, Stainless Steel AISI 316Ti
Threaded stud (Type C), Stainless Steel AISI 316
