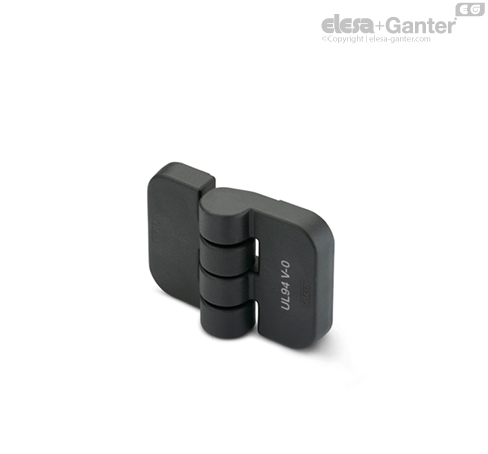

CFJ-AE-V0

Tamperproof hinges

Technopolymer certified self-extinguish

CFJ-AE-V0-B

Tamperproof hinges
Bosses with threaded hole

CFJ-AE-V0-p

Tamperproof hinges
Threaded studs

CFJ-AE-V0-B

Tamperproof hinges
Bosses with threaded hole

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, certified self-extinguishing UL-94 V0, black colour, matte finish.

Rotating pin

AISI 303 stainless steel, totally moulded in the hinge body.

Standard executions

  • CFJ-AE-V0-B: nickel-plated brass bosses with threaded hole.
  • CFJ-AE-V0-p: nickel-plated steel threaded studs.

Features and applications

The CFJ-AE-V0 hinge can be used in all areas for which specific regulations require the use of materials capable of preventing the risk of fire.

The pin is totally moulded in the hinge body (ELESA patent) thus it cannot be extracted, preventing any hinge tampering.

This charatcteristic makes the hinge particularly suitable for mounting on structures or equipments requiring protection against intrusion.

Rotation angle (approximate value)

Max 275º (-95° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines.



Resistance testsAxial StressRadial Stress90° Angled Stress
____logo__CFJ_S_AXIAL______logo__CFJ_S_RADIAL______logo__CFJ_S_90__
DescriptionMaximum working load
Ea [N]		Load at breakage
Ra [N]		Maximum working load
Er [N]		Load at breakage
Rr [N]		Maximum working load
E90 [N]		Load at breakage
R90 [N]
CFJ.50-AE-V0 B-M69002000120022006001000
CFJ.50-AE-V0 p-M6x179002000130032007001200
