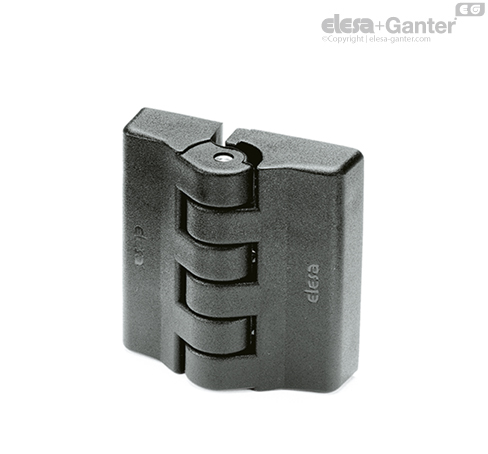

CFA-F

Hinges with detent position at 95°

Technopolymer

CFA-F

Hinges with detent position at 95°
Hinges with detent position at 90°

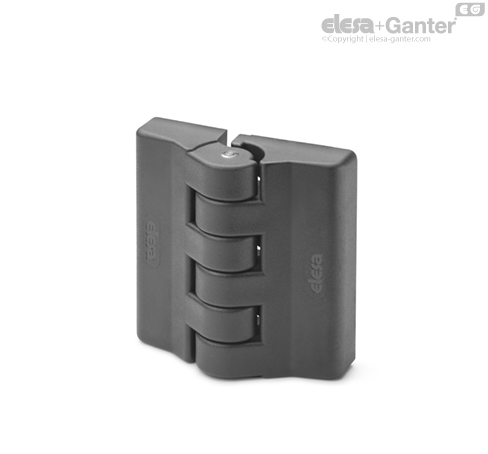

CFA-F-B

Hinges with detent position at 95°
Bosses with threaded hole

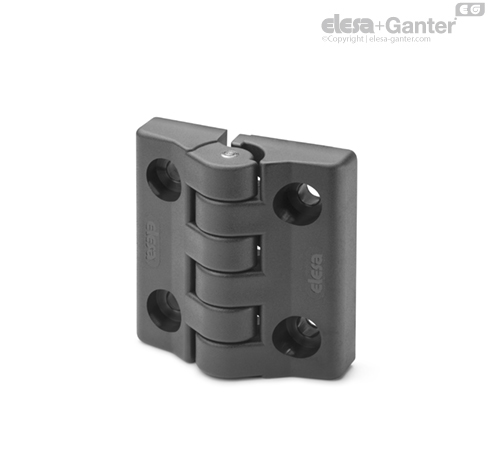

CFA-F-CH

Hinges with detent position at 95°
Pass-through holes, cylindrical head screws

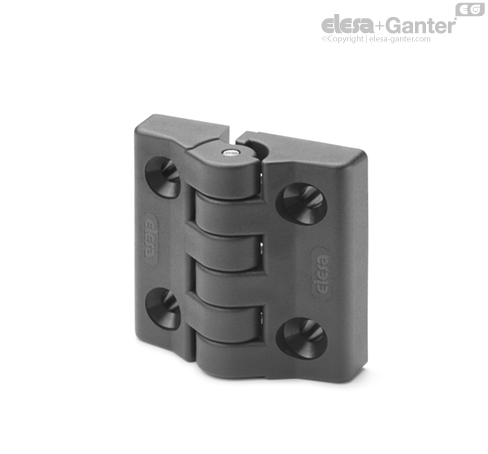

CFA-F-SH

Hinges with detent position at 95°
Pass-through holes, countersunk-head screws

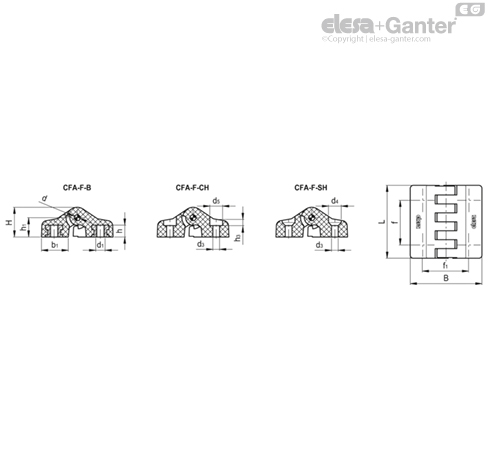

CFA-F

Hinges with detent position at 95°
Hinges with detent position at 90°

Material

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Rotating pin

AISI 303 stainless steel.

Standard executions

  • CFA-F-B: nickel-plated brass bosses with threaded hole.
  • CFA-F-CH: pass-through holes for cylindrical head screws.
  • CFA-F-SH: pass-through holes for countersunk head screws.

Features and applications

CFA-F hinges are recommended when the opening of the door must not exceed the limit of 90°.

Once the hinge is fitted onto the machine/door, the teeth of the detent system remain inside the hinge. Thus the operator cannot reach them for the safety of his hands.

Rotation angle (approximate value)

Max 100° (-10° and +90° being 0° the condition where the two interconnected surfaces are on the same plane).

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.



Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFA-F_S_AXIAL______logo__CFA-F_S_AXIAL______logo__CFA-F_S_RADIAL______logo__CFA-F_S_RADIAL______logo__CFA-F_S_90______logo__CFA-F_S_90__
DescriptionMaximum working load
Ea [N]		Load at breakage
Ra [N]		Maximum working load
Er [N]		Load at breakage
Rr [N]		Maximum working load
E90 [N]		Load at breakage
R90 [N]
CFA.49-F-B-M6330325047032501101540
CFA.49-F-CH-5380360037033003202490
CFA.49-F-SH-5300296031028803202490
CFA.65-F-B-M611505780155077807603820
CFA.65-F-CH-68105410100065507203980
CFA.65-F-SH-68405680101070107903960
