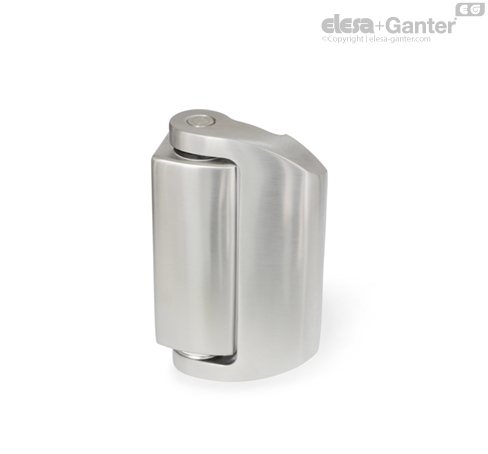

GN 139.6

Hinges without safety switch

Stainless Steel

GN 139.6

Hinges without safety switch
Hinges without safety switch

GN 139.6

Hinges without safety switch
Hinges without safety switch

Stainless Steel precision casting

  • AISI 316L
  • polished, Ra < 0.8 µm

Pin

Stainless Steel AISI 316L

With the exception of the connector plug, the hinge without safety switch GN 139.6 do not differ in their external appearance from hinges with safety switch GN 139.5 .With the concealed screw connection at the back, the hinge is also tamper-proof.

The compact design combines safety and attractive appearance.

The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.

Mechanical features
Maximum load | Information with safety factor | Examples of calculationLoad direction____logo__139-5_bl-la______logo__139-5_bl-lr0______logo__139-5_bl-lr90__
-F max.2000 N2000 N2000 N
-
Fixingfrom the back, 10 x threads M6, 8 mm deep
Recommended torque10 Nm (Screws M6)
