GN 666.7

Tubular Handles

Stainless Steel, Mounting from Operator‘s Side

GN 666.7

Tubular Handles
Stainless Steel-Tubular handles

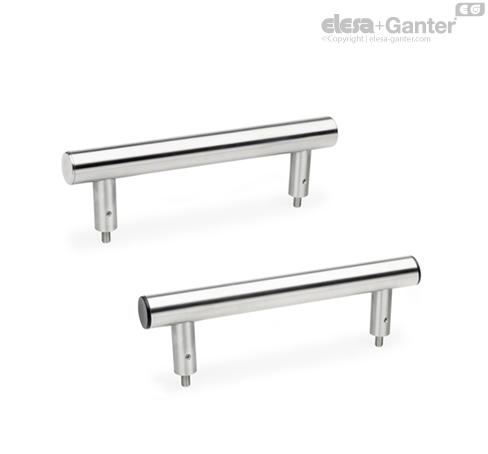

GN 666.7-E

Tubular Handles
With stainless steel cover cap

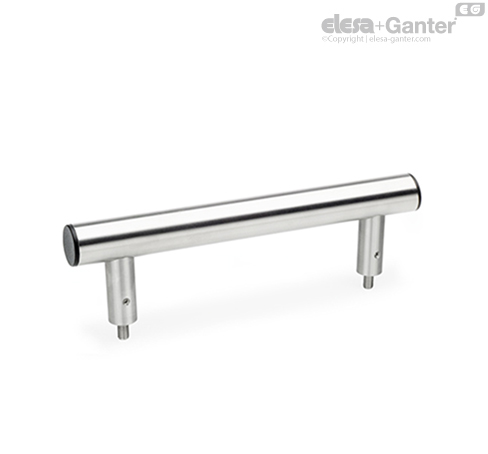

GN 666.7-K

Tubular Handles
With plastic cover

GN 666.7

Tubular Handles
Stainless Steel-Tubular handles

Types

  • Type K: with plastic cover cap
  • Type E: with Stainless Steel cover cap

Tube Ø 30 x 1.5

Stainless Steel AISI 304

matt shiny finish, ground

Handle shanks

Stainless Steel AISI 304

matt shiny finish, ground

Mounting stud

with threaded pin DIN 913-M8

Stainless Steel AISI 304

Grub screw DIN 914-M5

Stainless Steel AISI 304

Cover caps

  • Type K: Plastic (Polyamide PA), black matt
  • Type E: Stainless Steel AISI 304

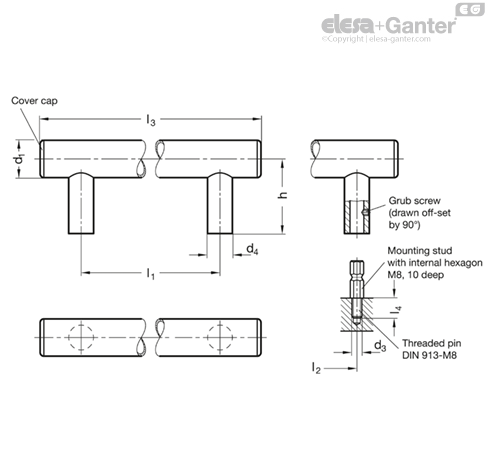

For a mounting of Stainless Steel-Tubular handles GN 666.7 (mounting from the back) the stud is first screwed in from the machine side with the threaded pin DIN 913-M8x25 (included) and then the handle is pushed on and secured with the grub screw DIN 914-M5.

Type E of Stainless Steel-Tubular handles GN 666.7 is completely made of A2-Stainless Steel.

  • Special lengths



Tubular handles GN 666.7 allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle).

Generally a modification of the thread length l4 required for this. The included threaded pin DIN 913-M8x25-A2 of mounting stud needs to be replaced by a longer threaded pin, too.

Handles with modified thread length l4 are available on request.
