GN 423

U-Handles

Handle Bar Aluminum / Handle Shanks Plastic, for 19“ Rack and Enclosure Layout

GN 423-A

U-Handles
Mounting from the back (Self-tapping screws)

GN 423-B

U-Handles
Mounting from the operator‘s side

GN 423-ELG

U-Handles
Anodized, natural colour, Handle shanks light grey

GN 423-ELS

U-Handles
Anodized, black, Handle shanks black, matt

GN 423-ESS

U-Handles
Anodized, natural colour, Handle shanks black

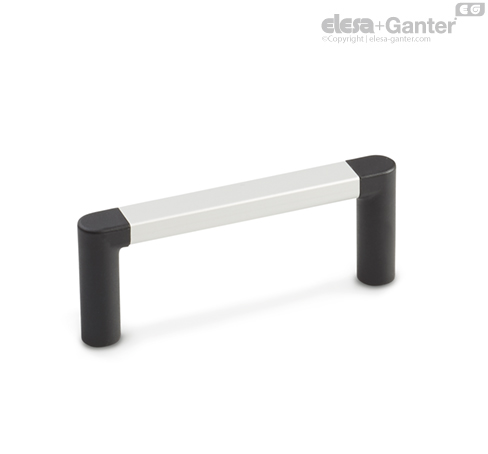

GN 423-A

U-Handles
Mounting from the back (Self-tapping screws)

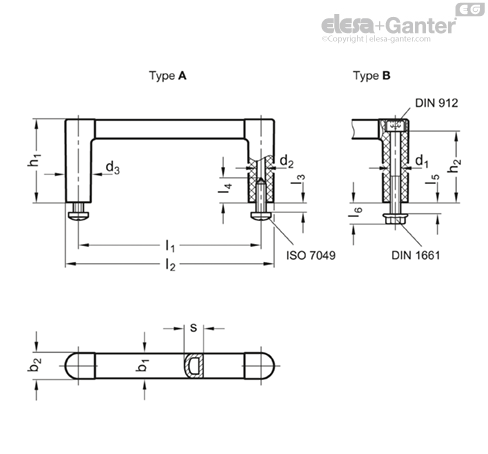

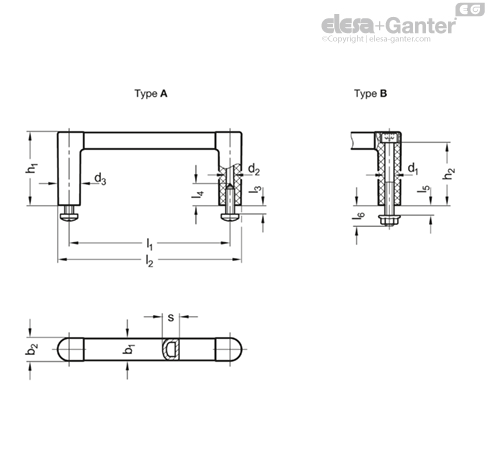

Types

  • Type A: Mounting from the back (Self-tapping screws)

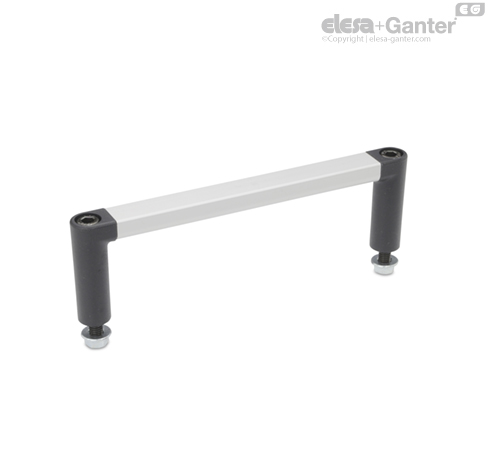

  • Type B: Mounting from the operator‘s side

Handle bar

Aluminum

  • Anodized, natural color ELS
  • Handle shanks black, matte finish
  • Anodized, natural color ELG
  • Handle shanks light gray, matte finish
  • Anodized, Black ESS
  • Handle shanks black, matte finish

Handle shanks

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature up to 130 °C

Self-tapping screw for type A

ISO 7049

Steel zinc plated ST4,8-19

Fastening set for type B

  • Socket cap screws ISO 4762-M5-45
  • Steel zinc plated, black finish
  • Flange nuts DIN 1661-M5
  • Steel zinc plated, blue passivated

The dimensisons of the U-handles GN 423 have been designed to match a 19" rack and enclosure layout.

The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.

Handle bar and handle shanks are interconnected via a plug-type connection, with the effect that special lengths are easily realised.

Thanks to the fixing screws included in the set, the U-Handles are easily and economically mounted.
