EMPC.

Bridge handles

Technopolymer

EMPC.

Bridge handles
Bridge handles

EMPC.

Bridge handles
Bridge handles

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Cover

  • ECA.M: polyamide-based (PA) technopolymer in Elecolors colours, matte finish.

Supplied, press-fit assembly, removable by a screwdriver.

Also available with accessory sold separately (see table ECA.M).

Standard execution

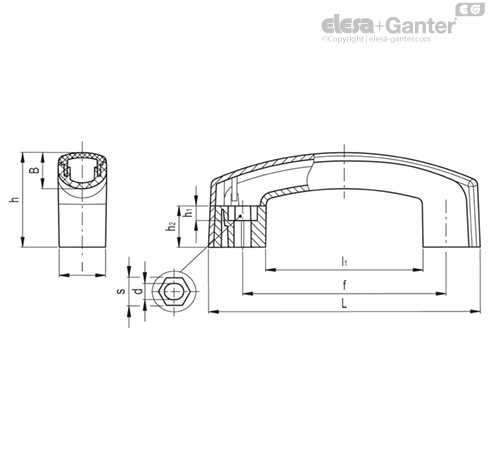

Pass-through holes for front or rear mounting via cylindrical-head screws with hexagon socket, hexagonal-head screws or nuts, which can be bought.

Technical data

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

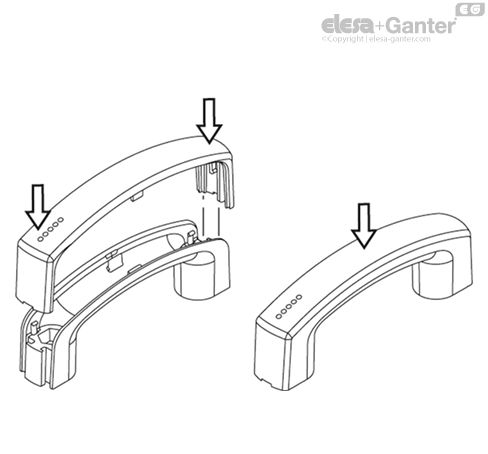

Assembly instructions

After having fixed the handle, insert the guides into the special grooves in the handle by forcing elastically all the way until fitting is complete.

Exert a final pressure on the central part in order to fully release the fixing of the cover.



Accessory on request

ECA.M: cover in Elecolors colours chromatic range (see table).
