EBR-SWB

Handle with bistable electrical switch

Technopolymer

EBR-SWB-B-C

Handle with bistable electrical switch
Connector, back output

EBR-SWB-B-F2.5

Handle with bistable electrical switch
Cable, length 2.5 m, back output

EBR-SWB-B-F5

Handle with bistable electrical switch
Cable, length 5 m, back output

EBR-SWB-L-C

Handle with bistable electrical switch
Connector, left side output

EBR-SWB-L-F2.5

Handle with bistable electrical switch
Cable, length 2.5 m, left side output

EBR-SWB-L-F5

Handle with bistable electrical switch
Cable, length 5 m, left side output

EBR-SWB-R-C

Handle with bistable electrical switch
Connector, right side output

EBR-SWB-R-F2.5

Handle with bistable electrical switch
Cable, length 2.5 m, right side output

EBR-SWB-R-F5

Handle with bistable electrical switch
Cable, length 5 m, right side output

EBR-SWB-B-C

Handle with bistable electrical switch
Connector, back output

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

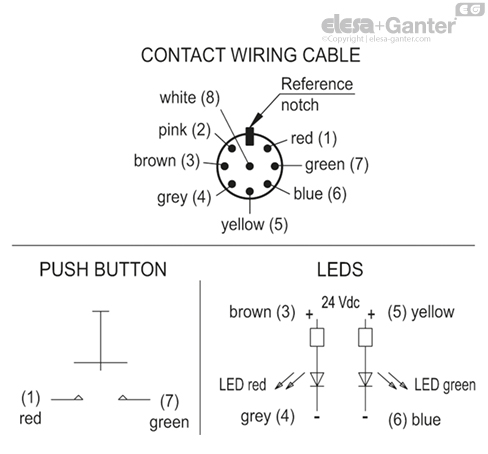

Microswitch with button

The device is made up of a bistable normally open contact (NO).

Switching takes place by pressing the purple button, and remains switched until pressed again.

Contact resistance: max. 0.050 Ω

Isolation resistance: min. 1 GΩ at 500 VDC

Led

A red Led and a green Led can be configured through external logic to indicate the switch status.

Voltage range 24 Vdc ± 15%

Screw-covers

Technopolymer, grey-black colour, matte finish. Supplied assembled, removable by a screwdriver.

IP protection

IP 65 protection class, according to EN 60529

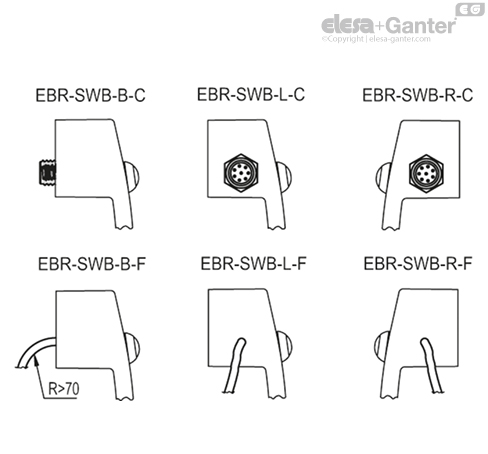

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket.

  • EBR-SWB-B-C: zinc-plated connector with 8 poles, back output.
  • EBR-SWB-L-C: zinc-plated steel connector with 8 poles, left side output.
  • EBR-SWB-R-C: zinc-plated connector with 8 poles, right side output.
  • EBR-SWB-B-F2.5: 8 pole cable, length 2.5 metres, back output.
  • EBR-SWB-B-F5: 8 pole cable, length 5 metres, back output.
  • EBR-SWB-L-F2.5: 8 pole cable, length 2.5 metres, left side output.
  • EBR-SWB-L-F5: 8 pole cable, length 5 metres, left side output.
  • EBR-SWB-R-F2.5: 8 pole cable, length 2.5 metres, right side output.
  • EBR-SWB-R-F5: 8 pole cable, length 5 metres, right side output.


Features and applications

This handle is used when it is necessary for the switching to be prolonged over time.

Through external logic, the Leds can be configured to indicate the specific status of the button. Example: button in neutral position green Led on, button switched on red Led off.

The mechanical life of the button is 200000 cycles.

In case of use of an extension with angled connector, the direction of the cable output is shown in the Fig.1.

EBR-SWB handle can be assembled with EBR neutral handle.

Technical data

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.



Electrical Features
LoadVoltageCurrentMax Cycles
Resistive12 Vdc4 A200000
Resistive48 Vdc1 A200000
Resistive48 Vdc2 A100000
Resistive48 Vdc3 A75000
Logic level5 Vdc10 mA200000
DWV1000 Vrms--

Accessories on request

FC-M12x1: extensions with 8 pole M12 female axial connector.

Other standard executions

  • EBR.: single complementary handle without switch.
  • EBR-SWM: handle with monostable electrical switch.
