GN 41b

Rotating Angle Brackets

Aluminum, for Aluminum Profiles (b-Modular System)

GN 41b

Rotating Angle Brackets
Rotating Angle Brackets

GN 41b

Rotating Angle Brackets
Rotating Angle Brackets

Type

  • Type C: With fastening set

Housing

Aluminum

Painted, white aluminum AW

Fastening set

Screws and T-slot nuts

Steel, zinc plated, blue passivated SZ

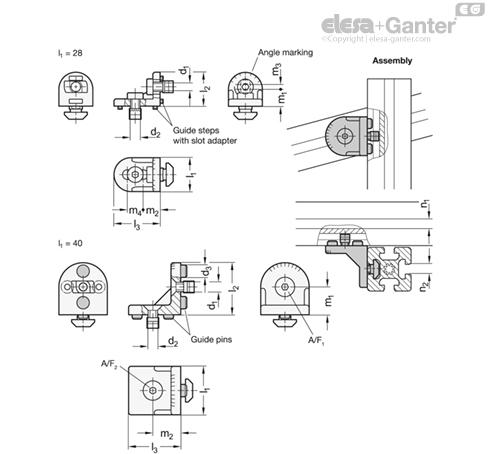

Slot adapter (for l1 = 28)

Plastic

Guide pins (for l1 = 40)

Plastic

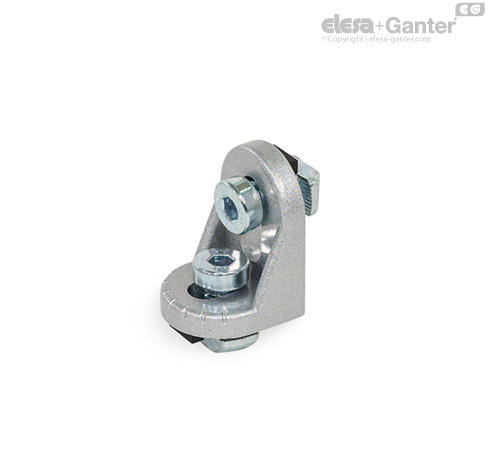

Rotating angle brackets GN 41b connect two crossed aluminum profiles at an any angle. Machining of the profile is not necessary.

Depending on the installation situation for the rotating angle bracket, it may be necessary to break off the guide steps or leave out the guide pins.
