GN 33b

Cube Connectors

Aluminum, for Aluminum Profiles (b-Modular System)

GN 33b-2

Cube Connectors
Connecting 2 profiles

GN 33b-3

Cube Connectors
Connecting 3 profiles

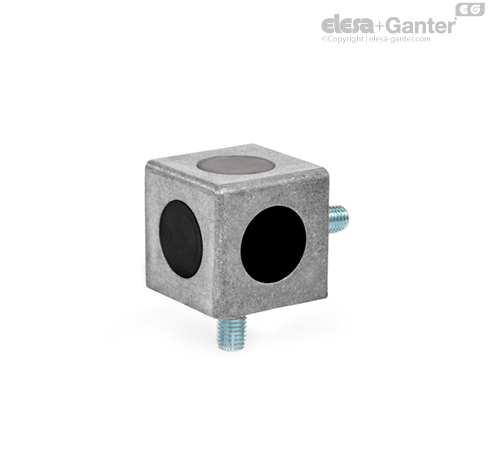

GN 33b-2

Cube Connectors
Connecting 2 profiles

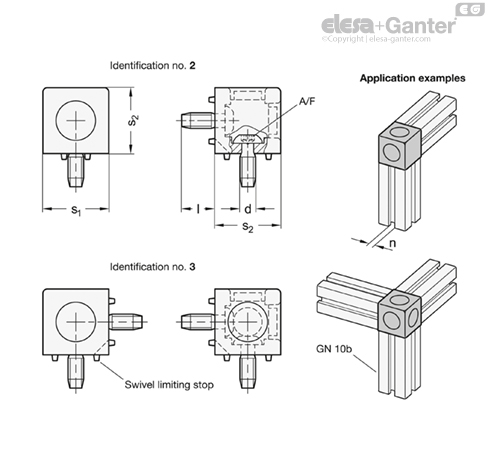

Identification no.

  • 2: Connecting 2 profiles
  • 3: Connecting 3 profiles

Type

  • Type C: With fastening set

Housing

Aluminum, plain finish AB

Screws

Steel, zinc plated, blue passivated SZ

Cover caps

Plastic (Polyamide PA)

Black S

Cube connectors GN 33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary.

The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance.

If panels are used in the slot, they must be given a suitable corner chamfer.
