GN 753.1

Guide Rollers

Plastic, with Ball Bearing

GN 753.1-KV

Guide Rollers
Convex

GN 753.1-ZL

Guide Rollers
Cylindrical

GN 753.1-KV

Guide Rollers
Convex

Types

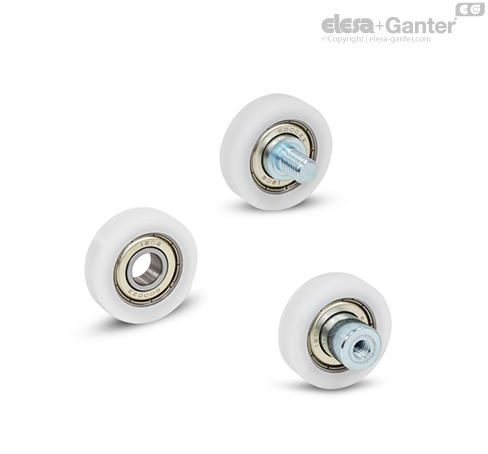

  • Type ZL: Cylindrical

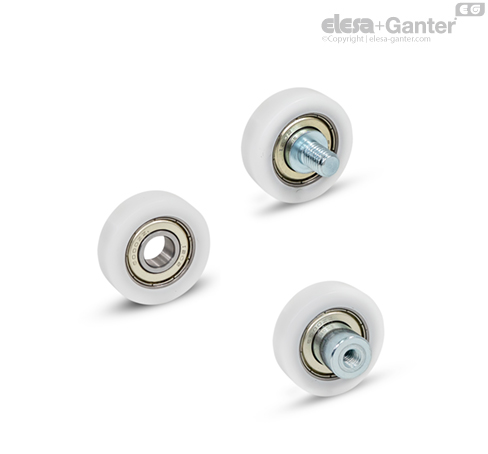

  • Type KV: Convex

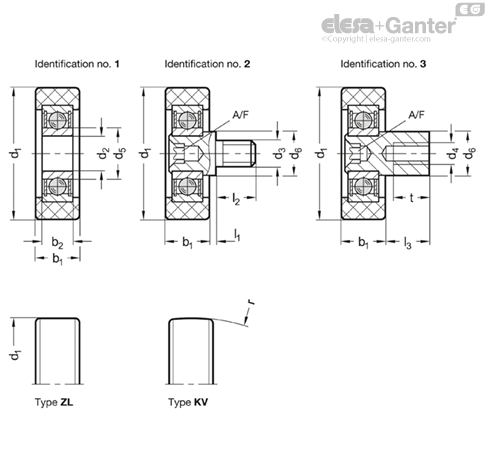

Identification no.

  • No. 1: With bore
  • No. 2: Stud with external thread
  • No. 3: Stud with internal thread

Outer race

Plastic, polyacetal (POM)

Operating temperature: -20 °C to 100 °C

Ball bearing

  • Steel, 100Cr6, hardened
  • Covered (cover disks 2Z)

Stud

Steel, zinc plated

Guide rollers GN 753.1 can be used as guides, bearings or supports for small to medium loads. They can also be used to create custom linear guide rail systems.

The radial load capacity rating given in the table should be understood as a guide value at which the guide rollers achieve a lifetime performance of at least 200,000 m. The conditions for achieving this lifetime performance are a speed of 0.4 m/s, a clean, dry, level, smooth and hard surface to roll against and an operating temperature between 15 °C and 30 °C. In general, the guide rollers should not be used under axial load.

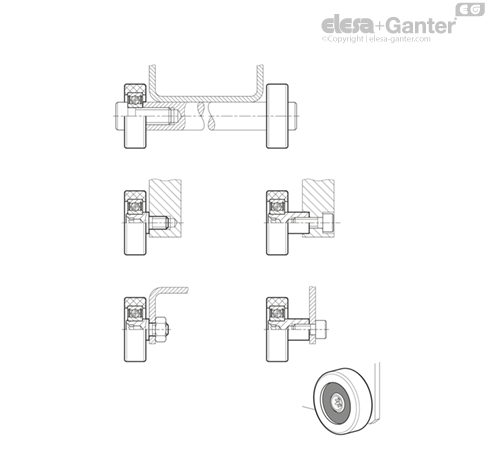

  • Application examples
