Steel, German Material No. 1.6541

  • forged
  • high-tensile tempered
  • 100 % electro magnetic tensile tested to EN 1677
  • phosphated

Lifting points GN 589 are distinguished for their very low dimensions. They provide high dynamic and static strength and can be load from any direction with approved safety (safety factor 4) for all loading directions.

The rated load carrying capacity listed in the above table is clearly marked on the lifting point. It applies to the most unfavourable load application of the load types listed opposite

Lifting points GN 589 comply with Mechanical Engineering Directive 2006 / 42 / EG.

Method of mounting____logo__581k2______logo__581k3______logo__581k4______logo__581k5______logo__581k6______logo__581k7______logo__581k8______logo__581k9__
Number11222223 and 43 and 43 and 4
Angles of inclination0°90°0°90°0° to 4545° to 60°asymm.0° to 45°45° to 60°asymm.
Factor11221.4112.11.51
b = 1001.6 t1.6 t3.2 t3.2 t2.2 t1.6 t1.6 t3.4 t2.4 t1.6 t
b = 1373.2 t3.2 t6.4 t6.4 t4.5 t3.2 t3.2 t6.8 t4.8 t3.2 t
b = 1725.0 t5.0 t10.0 t10.0 t7.1 t5.0 t5.0 t10.6 t7.5 t5.0 t
b = 22810.0 t10.0 t20.0 t20.0 t14.1 t10.0 t10.0 t21.2 t15.0 t10.0 t

The above details refer to the maximum load in metric tonnes.

Carefully check the wear markings for the abrasion of the lifting point.



Use permitted

No traces of wear

Use not permitted

Criteria reached:

Material worn down

to the wear marks

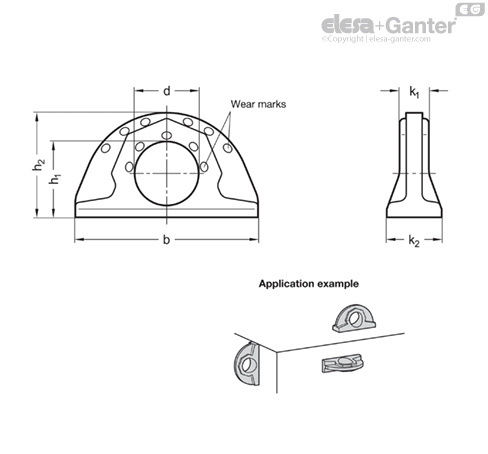

Lifting pointSize fillet seamLengthVolume in cm3
b = 100 ( 1.6 t)a = 42514.016
b = 137 ( 3.2 t)a = 634412.38
b = 172 ( 5.0 t)a = 743121.10
b = 228 ( 10.0 t)a = 857636.86

Welding must be made by an approved welder in accordance with EN 287-1.

The specified loading values are valid for an operating temperature of between -40 °C and + 200 °C. Load capacities under higher temperatures provided on request.

Operating instructions with more details and specifications are included with every delivery (see also www.elesa-ganter.com)
