GN 509.11

Ball Transfer Units

Steel / Stainless Steel, with External Thread, with Friction Bearing

GN 509.11-NI

Ball Transfer Units
Stainless steel

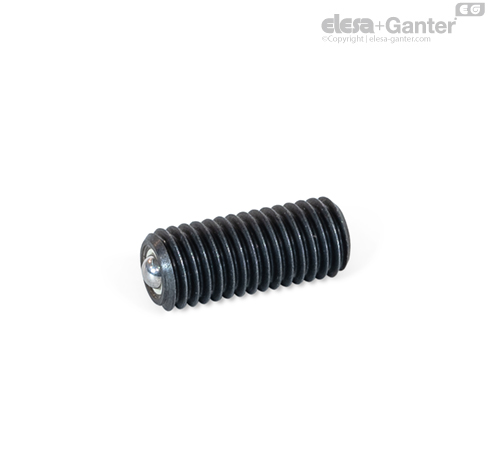

GN 509.11-ST

Ball Transfer Units
Steel

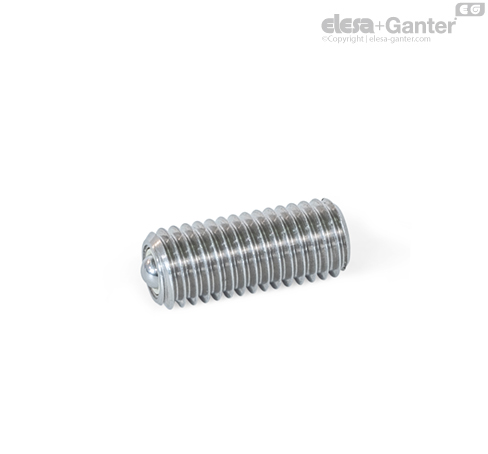

GN 509.11-NI

Ball Transfer Units
Stainless steel

Housing

  • Steel, blackened ST
  • Stainless steel AISI 303 NI

Ball

  • Steel AISI 52100, hardened for ST
  • Stainless steel AISI 420C, hardened for NI

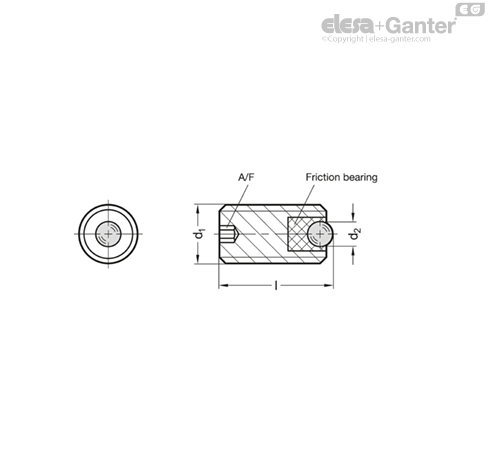

Friction bearing

Plastic

Operating temperature -50 °C to +90 °C

Ball transfer units GN 509.11 are used for building mechanisms and devices. The friction bearing of the ball ensures low-friction displacement and rotation of workpieces in any direction.

The position of the ball transfer units can be adjusted in the axial direction using the external thread.
