GN 1133

Threaded Lifting Pins

Steel / Stainless Steel, Self-Locking

GN 1133-NI

Threaded Lifting Pins
Stainless steel

GN 1133-ST

Threaded Lifting Pins
Steel

GN 1133-NI

Threaded Lifting Pins
Stainless steel

Steel ST

  • Pin, shackle
  • Heat-treated, manganese phosphated

Stainless steel NI

  • Pin, AISI 630

Precipitation hardened

  • Shackle, AISI 316Ti

Threaded segments

  • Stainless steel AISI 630
  • Precipitation hardened

Push button

Aluminum, orange anodized

Spring

Stainless steel

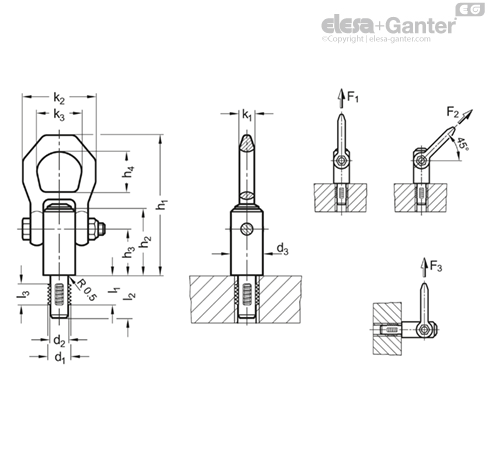

Threaded lifting pins GN 1133 are support elements designed for quick and easy use. Pressing the operation button unlocks the threaded segments, allowing the pin to be moved in or out of the mounting thread. This eliminates the time-consuming process of screwing in or out encountered with typical lifting gear, such as lifting eye bolts.

Assuming sufficient material strength, only true-to-gauge threaded holes are required to make use of the threaded lifting pins.

The shackle swivels by 180°, with a safety bar protecting the button from unintentional operation.

For further application guidelines, see the operating instructions enclosed with every threaded lifting pin
