GLP

Linear guide rails

Flat profile, technopolymer, stainless steel

GLP-12

Linear guide rails
Ledge 12 mm

GLP-32

Linear guide rails
Ledge 32 mm

GLP-12

Linear guide rails
Ledge 12 mm

Guide profile

Polyethylene based (HMWPE) technopolymer, natural colour.

Bracket

AISI 304 stainless steel.

Standard executions

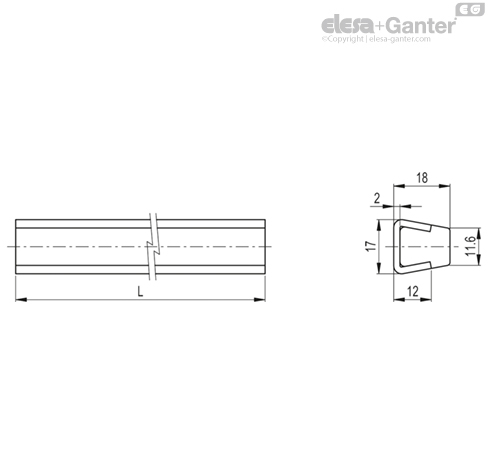

  • GLP-12: contact surface width of about 12 mm.
  • GLP-32: contact surface width of about 32 mm.

Features and applications

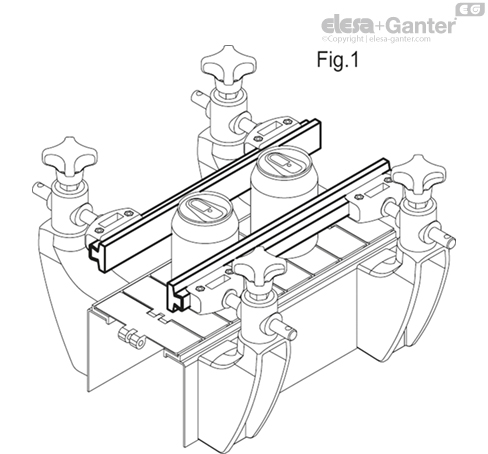

GLP side guides are used for the side guide of products with different dimensions on conveyor belts (Fig.1), without leaving traces on the containers.

High molecular weight polyethylene (HMWPE) has a high wear resistance; it is particularly suitable for high-speed movements due to its low coefficient of friction.

Depending on the product to transport, it is recommended to use:

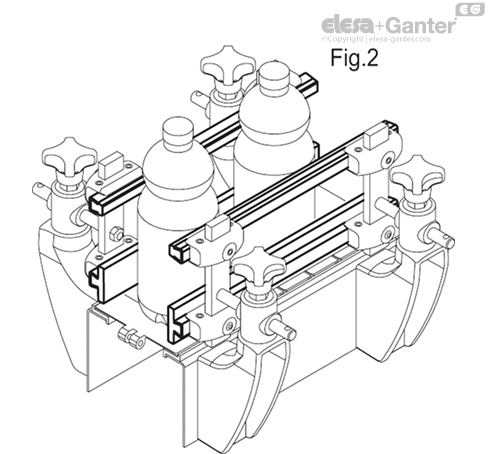

  • GLP-12: for the guide of products with limited dimensions or for GLP-32 support (Fig.2);
  • GLP-32: for the guide of products with important vertical dimensions.

Supplied in bars of 1500 or 3000 mm length.




Accessories on request

Guide rail clamps MPG-T-S, MPG-2T, MPG-T.
