GN 482

Swivel clamp mountings

Aluminium

GN 482

Swivel clamp mountings
Swivel clamp mountings

GN 482

Swivel clamp mountings
Swivel clamp mountings

Types

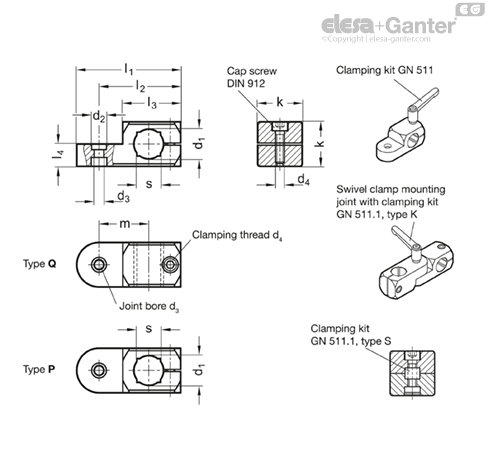

  • Type Q: Clamping bore transverse to the swivel axis
  • Type |b
    bb|: Clamping bore parallel to the swivel axis

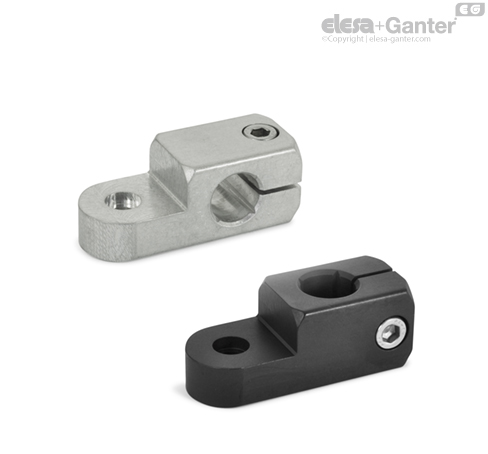

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Cylinder head screws DIN 912

Stainless Steel AISI 304

Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.

Also, the clamping screw d4 - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit  GN 511 .

The description for ordering is shown in the dimensional table.
