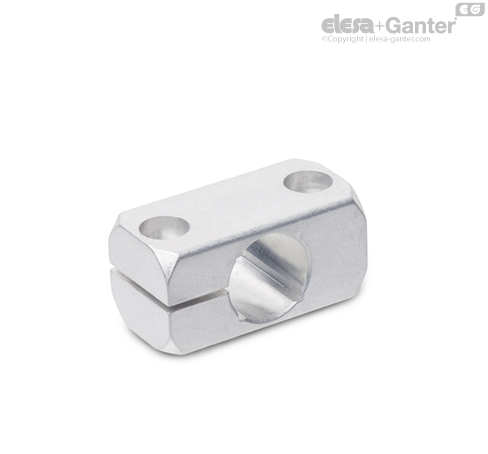

GN 477

Clamp mountings

Aluminium

GN 477

Clamp mountings
Clamp mountings

GN 477

Clamp mountings
Clamp mountings

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Clamping kits GN 511

Zinc die casting

Inserts / Distance bushings

Stainless Steel AISI 303

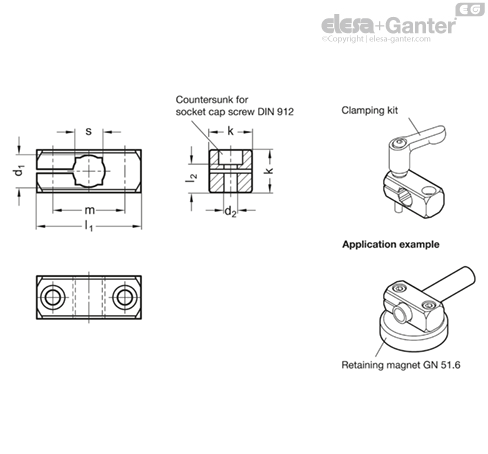

The clamp mountings GN 477 have no thread. Fixing or clamping is made via two threads on the attachment side.

The bore distance m of the clamp mountings GN 477 is matched with the foot clamp mountings  GN 473  and the flanged bolts GN 480  as well as retaining magnets GN 51.6 .
