GN 475

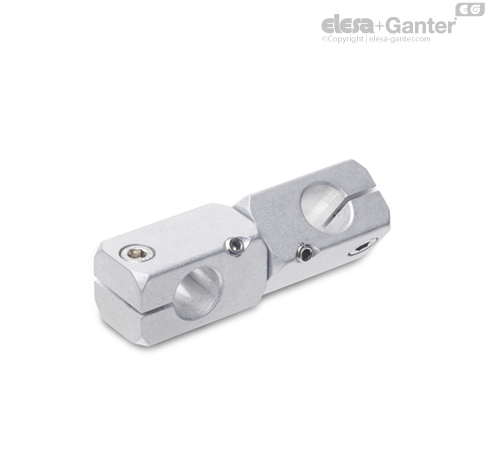

Twistable two-way clamp mountings

Aluminium

GN 475

Twistable two-way clamp mountings
Twistable two-way clamp mountings

GN 475

Twistable two-way clamp mountings
Twistable two-way clamp mountings

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

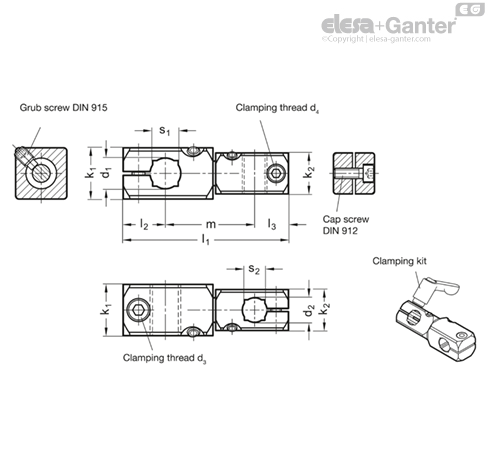

Socket cap screws DIN 912

Stainless Steel AISI 304

Grub screw DIN 915

Stainless Steel AISI 304

Clamping kits GN 511

Twistable two-way clamp mountings GN 475 connect rods and tubes within the clamp mounting system under any adjustable angle. With the angle adjustment released, the clamp mounting halves stay connected with formlocking effect.

The standard version of the clamping screws at the clamping threads d3 and d4 are socket cap screws with hexagonal socket DIN 912. They can be replaced by an adjustable clamping lever  GN 511 .
